Australia Fire Resistant Fire Alarm Cables

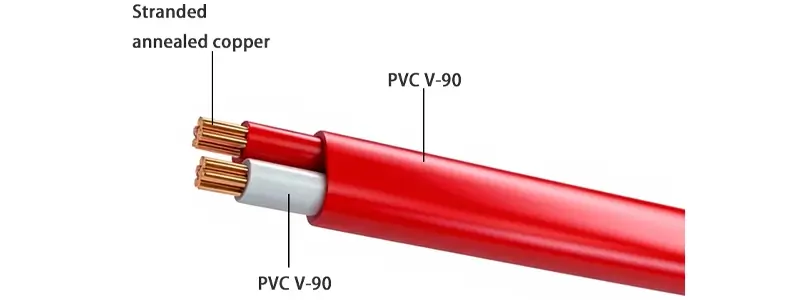

Conductor l：
Stranded Annealed Copper
Insulation：
PVC V-90
Sheath：
PVC V-90
Rated Voltage Uo/U (Um)：
250/250V
Operating Temperature：
90ºC
Description
Download
Copper Conductor
Stranded Annealed Copper
Insulation & Sheath
PVC Free - Low Smoke Zero Halogen
Multi-Core Power Cable
2 Core
Temperature Range
90ºC
2HR Fire Alarm Cables

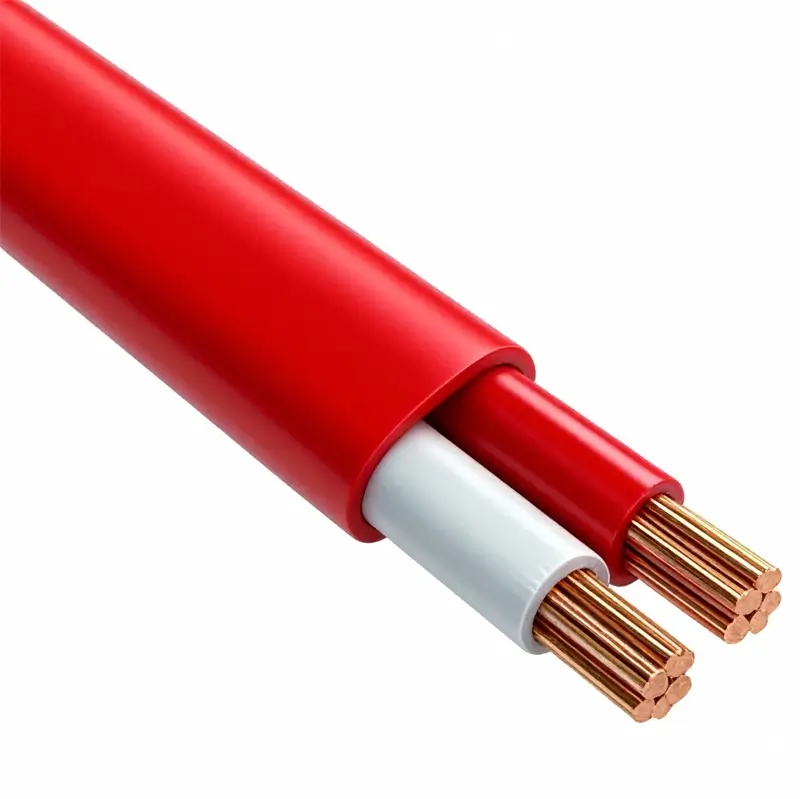

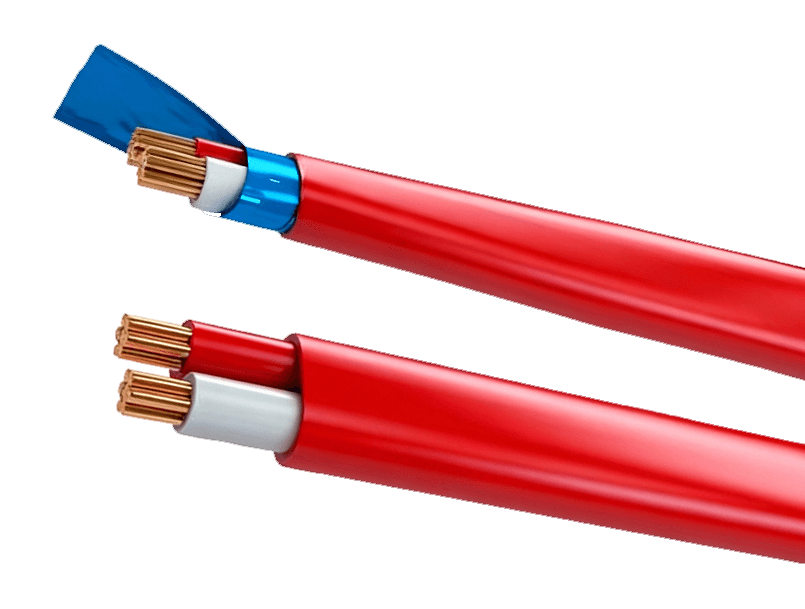

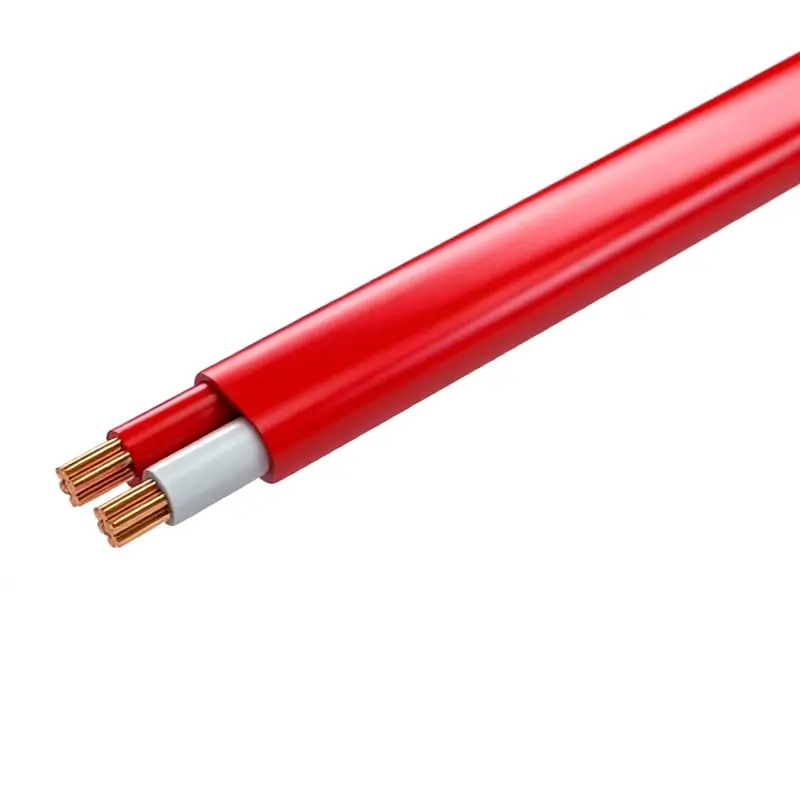

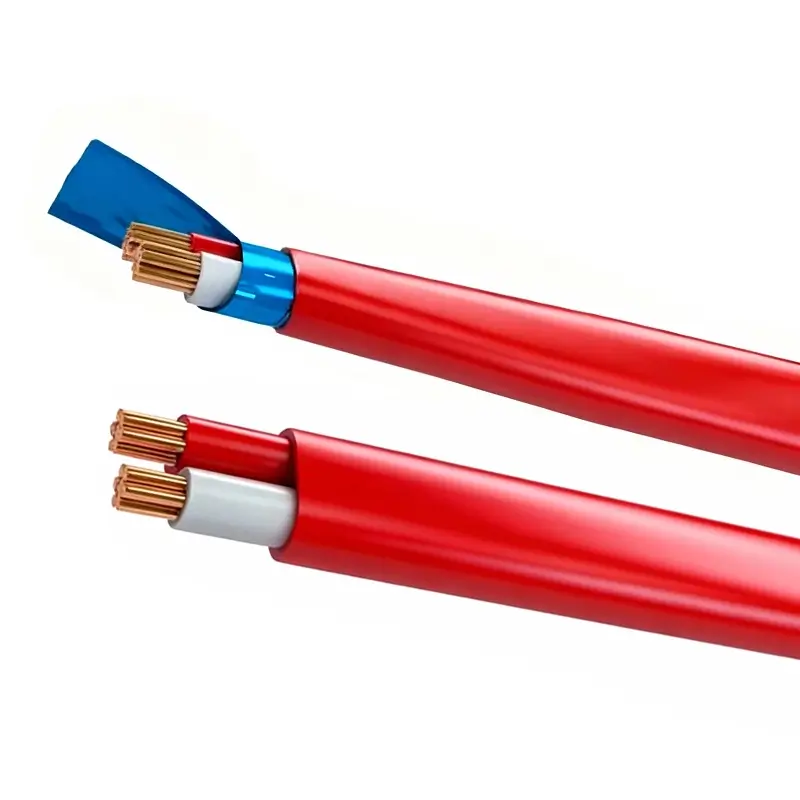

TPS fire alarm cables include flat white striped TPS cables, twisted-pair TPS cables, and twisted-pair shielded TPS cables, providing reliable, high-performance connections for fire alarm and emergency communication systems in Australia (and even Oceania).
Fire Alarm Cables
For ELV (Extra Low Voltage) applications, this cable is used for interconnecting fire alarm control panels with ancillary and field devices, including detectors, sounders, modules, and emergency system components.
Stranded Annealed Copper
Rated Voltage Uo/U (Um) 250V
PVC V-90
Standards AS/CA S008
PVC V-90
Operating Temperature 90 ℃
Advantages of fire rated cable
TPS fire alarm cables feature 2 core, stranded copper conductors with red thermoplastic sheathing, excellent mechanical protection, and clear identification in compliance with AS/CA S008 and AS/NZS 1670.2018 standards.

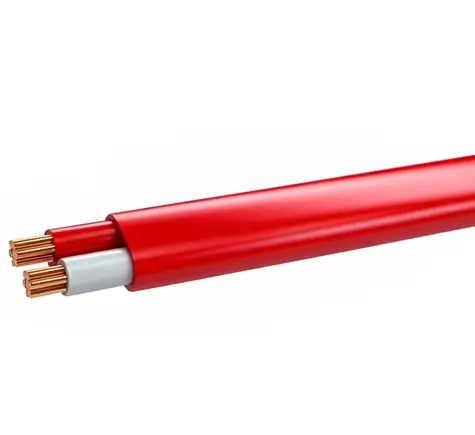

| Flat TPS cable | ||||||
| Cross Section (mm2) |
Cores | No. of Conductors x diameter (mm) |
Overall Size | Resistance (Ω / km) |
Capacitance (pF/m) |
Inductance (uH/m) |
| 0.75mm | 2 | 7 x 0.37 | 6.4 x 4.1 | 24.3 | 78 | 0.7 |
| 1.0mm | 2 | 7 x 0.42 | 7.2 x 4.3 | 19.7 | 76 | 0.69 |
| 1.5mm | 2 | 7 x 0.52 | 7.2 x 4.5 | 12.8 | 75 | 0.68 |
| Twisted TPS | ||||||
| Cross Section (mm2) |
Cores | No. of Conductors x diameter (mm) |
Overall Size | Resistance (Ω / km) |
Capacitance (pF/m) |
Inductance (uH/m) |
| 1.5mm | 2 | 7 x 0.52 | 7.2 x 5.0 | 12.5 | 88 | 0.65 |

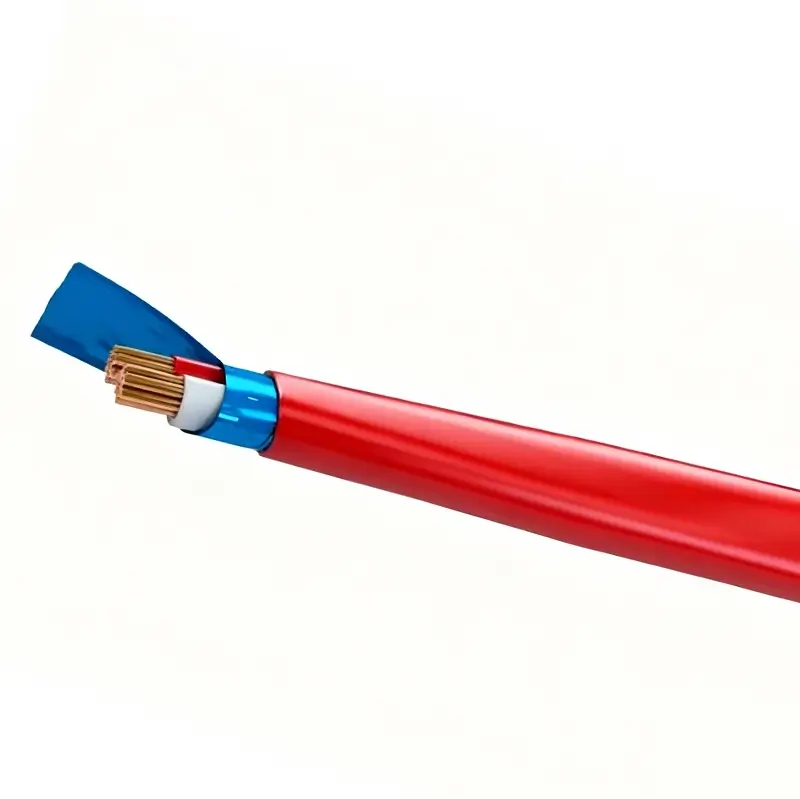

| Twisted Screened TPS | |||||||
| Cross Section (mm2) |
Cores | No. of Conductors x diameter (mm) |
Overall Size | Resistance (Ω / km) |
Capacitance Red/White (pF/m) |
Capacitance Conductor/Screen (pF/m) | Inductance (uH/m) |
| 1.5mm | 2 | 7 x 0.52 | 7.2 x 5.0 | 12.8 | 124 | 198 | 0.64 |
Certification
Fire alarm cables are certified by SAA (Standards Australia Approval) and fully comply with applicable electrical safety standards in Australia and New Zealand. SAA certification confirms that these cables have successfully passed rigorous testing and evaluation procedures, including electrical performance, insulation integrity, mechanical strength, and overall safety requirements.
Fire Resistant
Stable Performance
Mechanical Durability
SAA Certified
APPLICATIONS
TPS fire alarm cables are widely used in fire detection, alarm, and emergency communication systems in commercial, residential, and infrastructure projects. They are suitable for connecting fire alarm control panels, detectors, manual alarm buttons, audible and visual alarms, and emergency alarm speakers, maintaining the stability of signal and power transmission throughout the system.

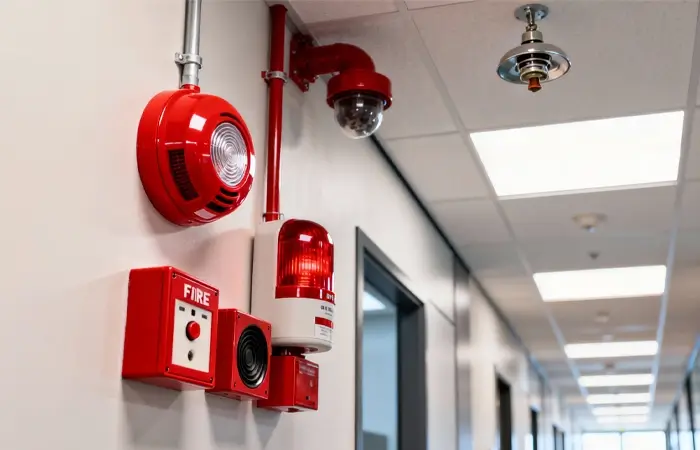

Fire Alarm System
Used for connecting fire alarm control panels to smoke, heat, and multi-sensor detectors, ensuring reliable signal transmission for early fire detection.

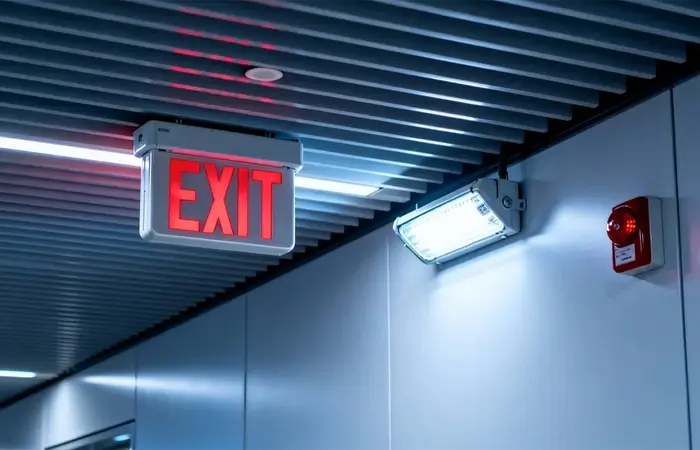

Emergency Lighting
Used for control and monitoring connections in emergency lighting systems integrated with fire alarm infrastructure.
Public Building
Installed in fire alarm systems for hospitals, hotels, shopping malls, offices, and educational facilities, where system reliability is critical.
Subways
Suitable for fire alarm and emergency communication systems in airports, metro stations, tunnels, and large infrastructure projects.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional fire rated cable manufacturer. We focus not only on the product itself, but also on stable supply and project delivery capabilities. Our factory boasts a mature raw material supply system and multiple continuous production lines, enabling us to flexibly handle both regular orders and bulk project demands, ensuring controllable delivery times and consistent quality.
Packaging Information

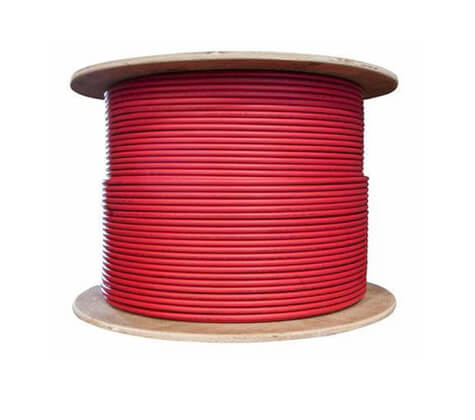

Fire alarm cables are typically packaged in coils, plastic reel, or wooden reel. We also offer custom packaging services.

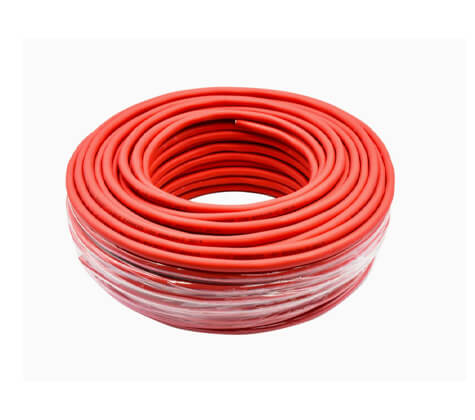

Coiled

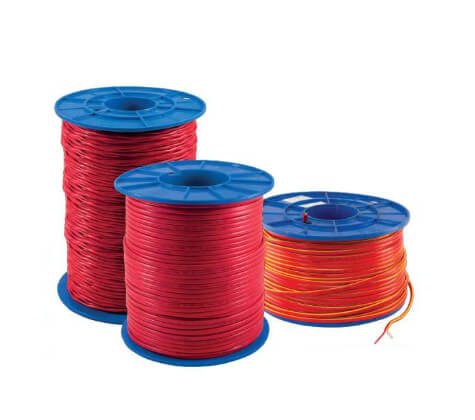

Plastic Reel
Wooden Reel
