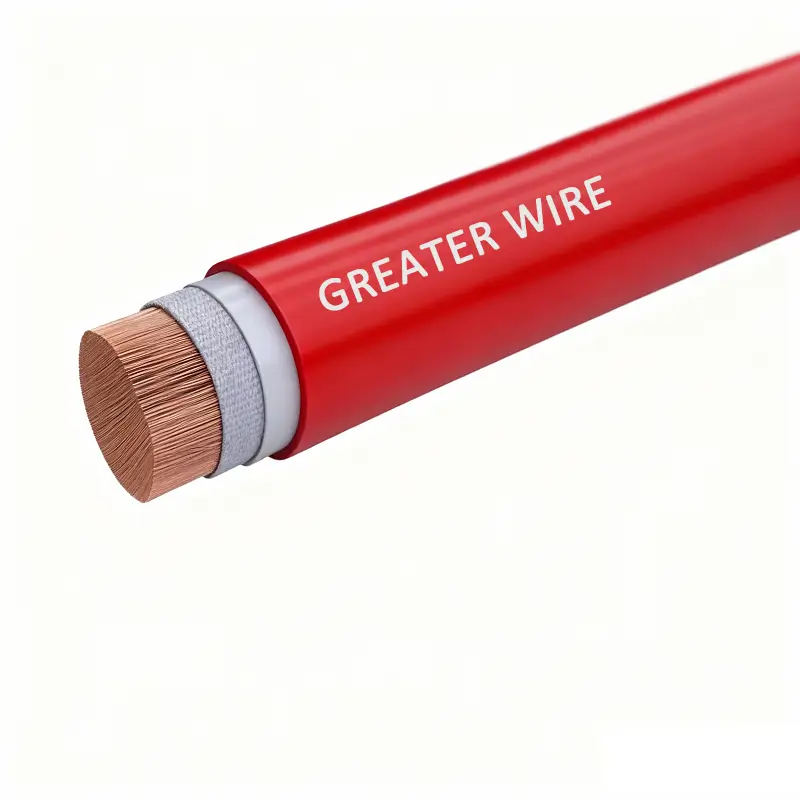

AS/NZS 5000.1 Single Core 2 Hour Fire Rated Cable
Conductor material：
Copper
Conductor flexibility：
Class 6 flexible copper
Insulation：
Low Smoke Zero Halogen
Outer sheath：
Low Smoke Zero Halogen
Rated Voltage Uo/U (Um)：
0.6/1 kV
Description
Download
Copper Conductor
Class 6 Flexible Conductors
LSZH Insulation & Sheath
PVC Free - Low Smoke Zero Halogen

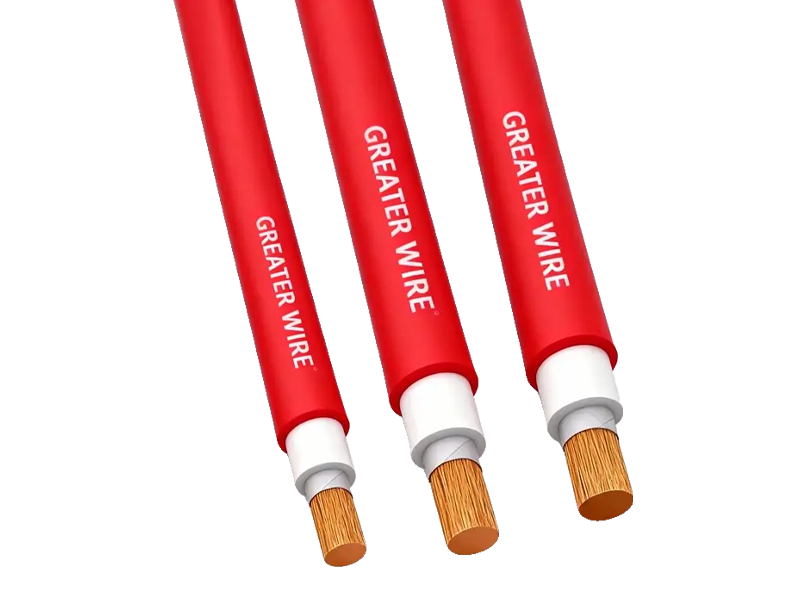

Single Core Power Cable
Higher Installation Flexibility
Temperature Range
Operated At Temperatures Up To 110℃

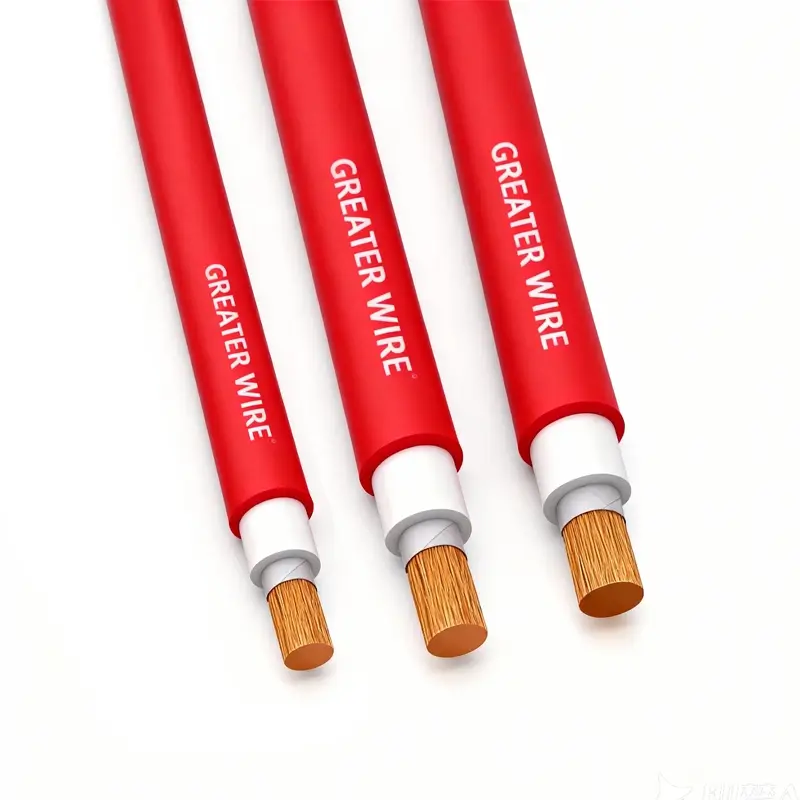

2 hour fire rated cable
Single core 2HR fire rated cable features 2 hours of fire resistance, low smoke and halogen-free flame retardancy, and can operate stably at 110°C, ensuring the circuit remains undamaged in emergencies.

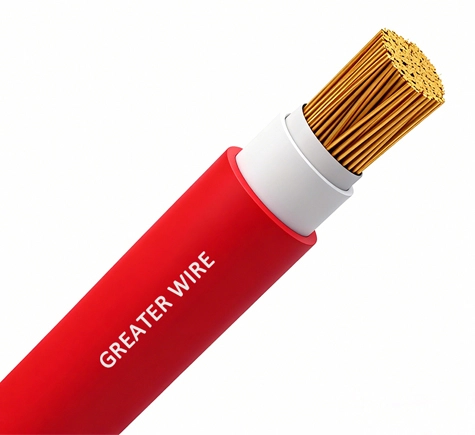

2 Hour Fire Rated Cable
For submain and Mechanical Service Switchboard (MSSB) feeds, providing a reliable fire-resistant power supply.

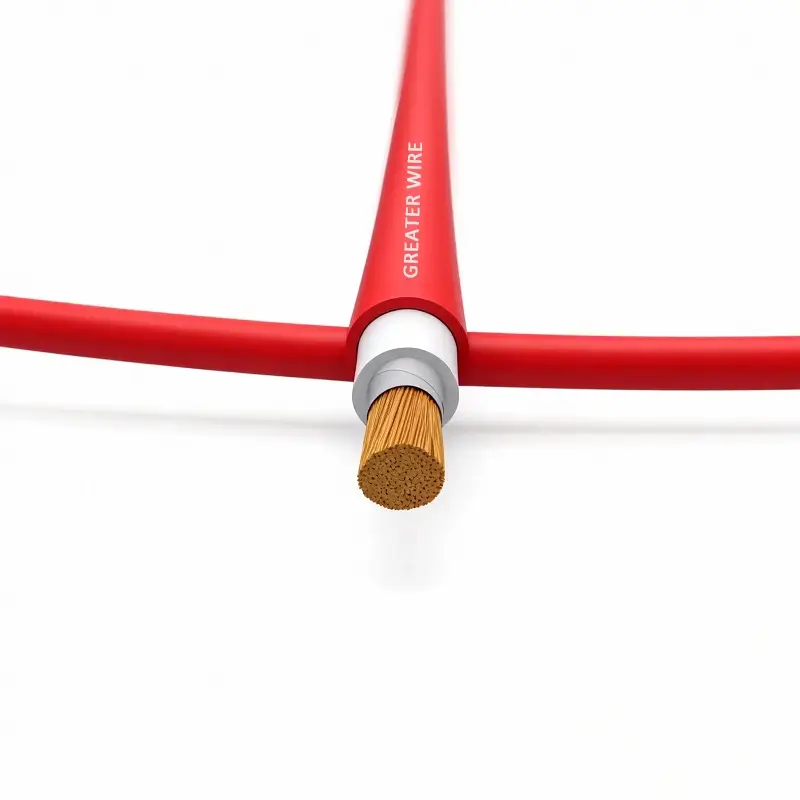

Class 6 flexible Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
Low Smoke Zero Halogen Insulated
Standards AS/NZS 5000.1
Low Smoke Zero Halogen Sheathed
Temperature to 110 ℃
Advantages of 2 hour rated cable

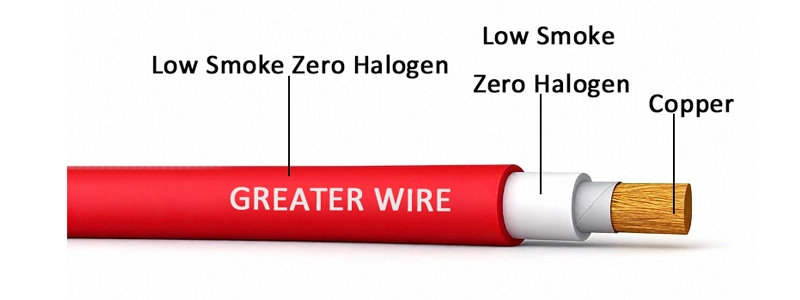

The cable adopts a double-layer fire-resistant structure with Class 6 flexible copper conductor, mica fire-retardant layer, LSZH flame-retardant insulation and red sheath, and is designed according to AS/NZS 5000.1 and AS/NZS 3013 (WS52W) standards.
| Cross Section (mm²) |
No. of Cores |
Conductor Class | Approx Overall Diameter (mm) |
Operating Temperature (℃) |
DC Resistance 20℃ (Ω / km) |
| 6 | 1 core | Class 6 | 10.6 | -25℃ to 110℃ | 3.3 |
| 10 | 1 core | Class 6 | 11.8 | -25℃ to 110℃ | 1.91 |
| 16 | 1 core | Class 6 | 12.8 | -25℃ to 110℃ | 1.21 |
| 25 | 1 core | Class 6 | 14.2 | -25℃ to 110℃ | 0.78 |
| 35 | 1 core | Class 6 | 16 | -25℃ to 110℃ | 0.554 |
| 50 | 1 core | Class 6 | 18 | -25℃ to 110℃ | 0.386 |
| 70 | 1 core | Class 6 | 20 | -25℃ to 110℃ | 0.272 |
| 95 | 1 core | Class 6 | 23 | -25℃ to 110℃ | 0.206 |
| 120 | 1 core | Class 6 | 25 | -25℃ to 110℃ | 0.161 |
| 150 | 1 core | Class 6 | 28 | -25℃ to 110℃ | 0.129 |
| 185 | 1 core | Class 6 | 30 | -25℃ to 110℃ | 0.106 |
| 240 | 1 core | Class 6 | 33 | -25℃ to 110℃ | 0.0801 |
| 300 | 1 core | Class 6 | 35 | -25℃ to 110℃ | 0.0641 |
| 400 | 1 core | Class 6 | 41 | -25℃ to 110℃ | 0.0486 |
| 500 | 1 core | Class 6 | 46 | -25℃ to 110℃ | 0.0384 |
| 630 | 1 core | Class 6 | 49 | -25℃ to 110℃ | 0.0287 |
Certification
Single core 2 hour fire rated cable delivers proven reliability through its comprehensive certifications—including WS52W, AS/NZS 5000.1, AS/CA S008— full compliance, superior fire performance for essential building systems.
Fire Resistant
2 Hour Fire Survival
Mechanical Durability
SAA Certified
APPLICATIONS
Single core 2HR fire rated cable is widely used in fire alarm systems, critical emergency power supply lines, and fire-resistant wiring for life safety equipment, ensuring continuous power supply and signal transmission during fires.
Emergency Lighting
Using emergency lighting systems and evacuation signs to maintain visibility and provide safety guidance during a fire.
Fire Alarm Control Panels
Wiring for the main power supply or critical circuits of fire alarm control panels, ensuring continuous system operation during a fire.

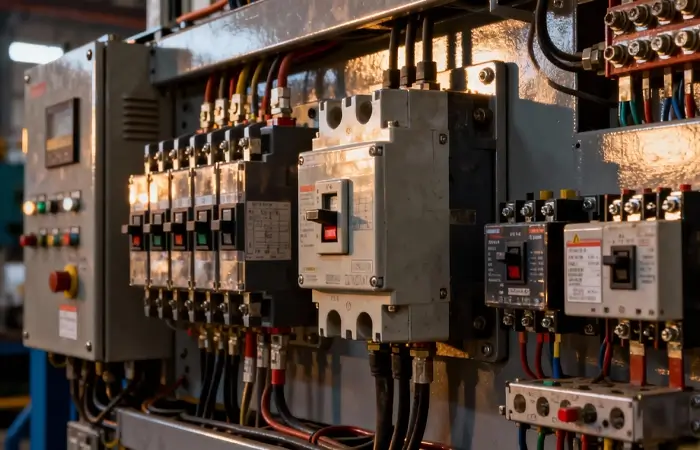

Mechanical Service Switchboards
Providing fire-resistant power to mechanical service distribution panels, such as smoke exhaust systems, ventilation systems, and mechanical emergency equipment.
Smoke Extraction Systems
Powering fire-fighting machinery systems such as smoke exhaust fans and pressurization fans, ensuring the normal operation of fire smoke control functions.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional 2HR fire rated cables manufacturer that caters to a wide range of critical applications, including emergency lighting systems, fire pumps, submain power feeds, mechanical switchboards, and essential service circuits. Our deep understanding of different project requirements allows us to offer customized cable solutions in terms of conductor size, insulation type, color coding, and length. As a trusted manufacturer, we also provide professional technical support, helping clients select the most suitable cable for their specific needs.
Packaging Information
Fire cables are typically packaged in coils, plastic reel, or wooden reel. We also offer custom packaging services.
Coiled
Plastic Reel
Wooden Reel
