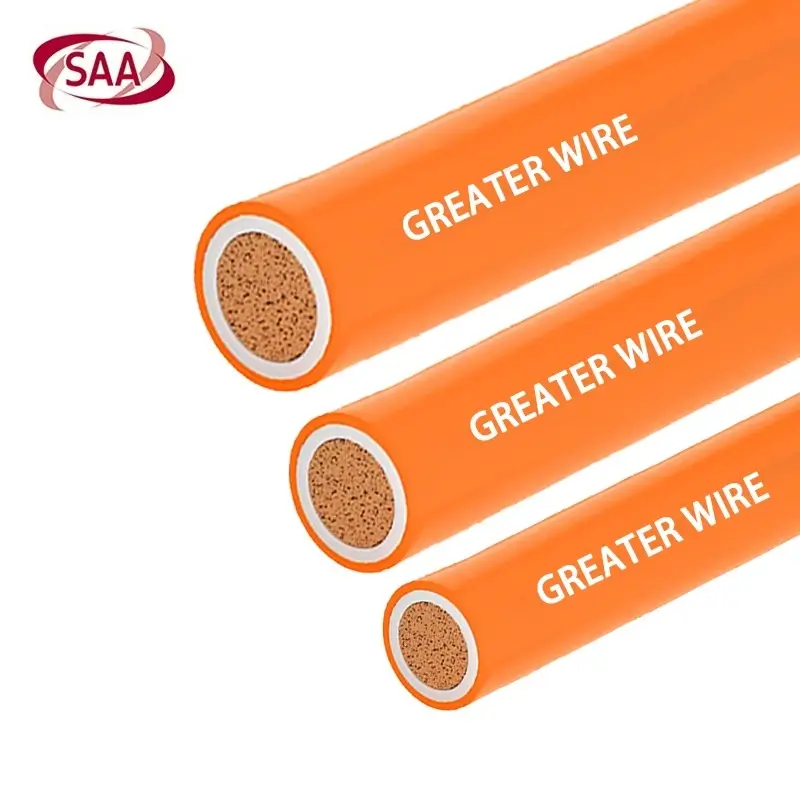

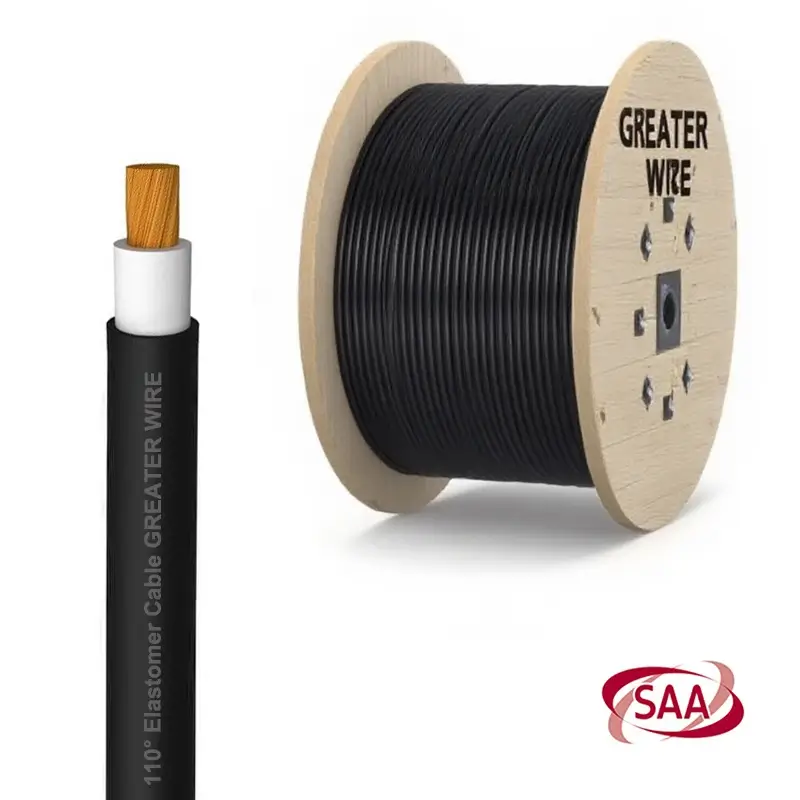

Australia Standard 110℃ Flexible X-HF-110 Elastomer Cable
Conductor material：
Copper
Conductor flexibility：
Class 5
Insulation：
X-HF-110
Outer sheath：
HFS-110-TP
Rated Voltage Uo/U (Um)：
0.6/1 kV
Standards：
AS/NZS 5000.1
Description
Download

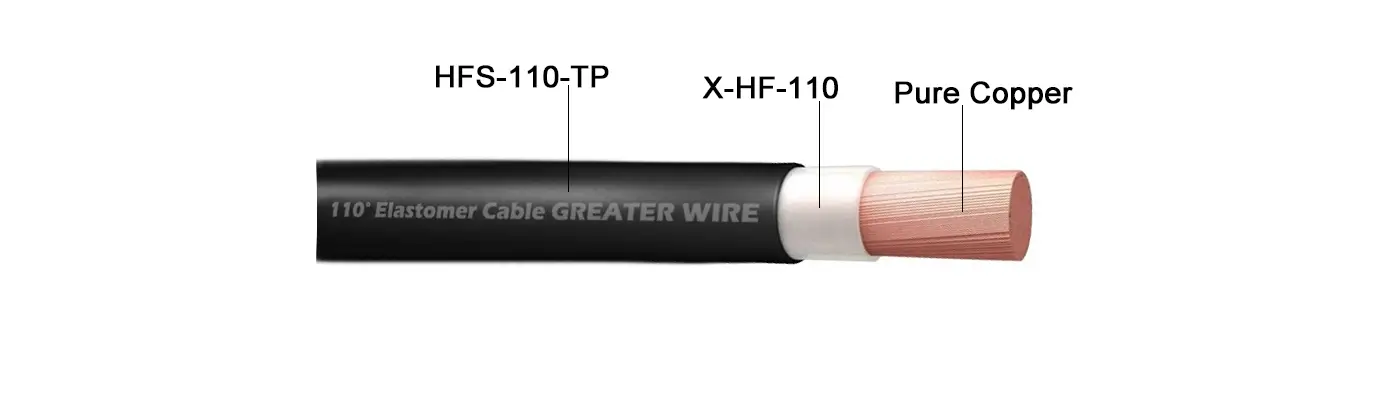

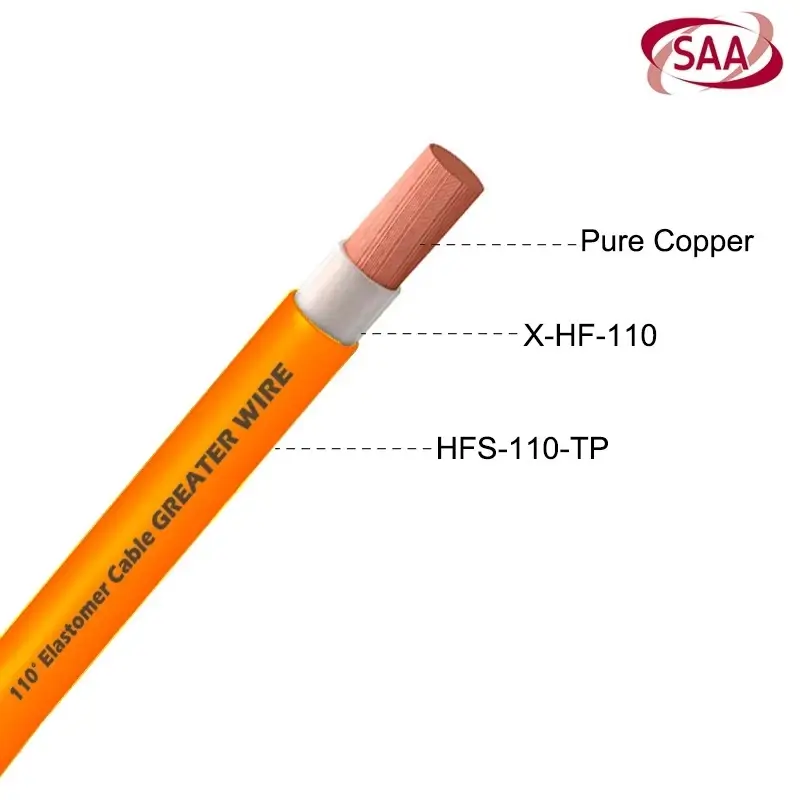

Copper Conductor
Class 5 copper conductor
X-HF-110 Insulation
High-Temperature, Low-Fire Hazard Composite
HFS-110-TP Sheath
Low-Smoke Halogen-Free / LFH
Continuous Operating Temperature
Maximum 110°C

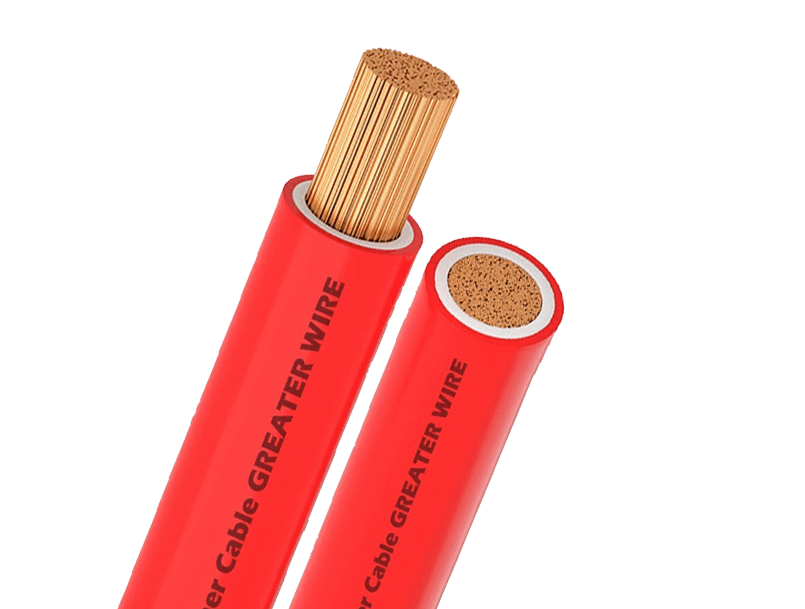

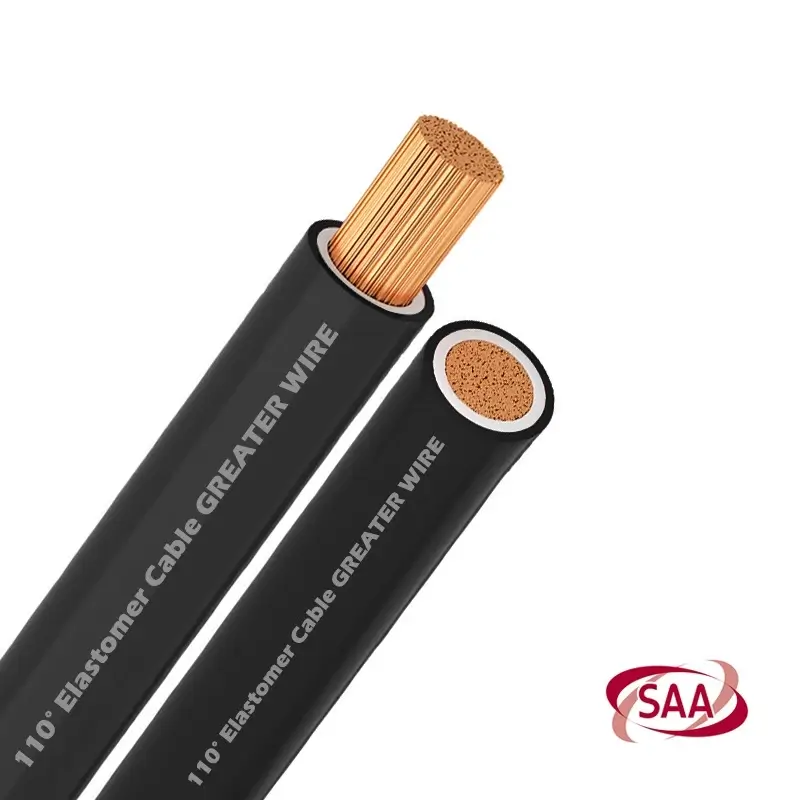

Single Core elastomer Cable
Single core 110 °C flexible cable offers excellent high-temperature resistance, maintaining stable electrical and mechanical characteristics in continuous 110 °C operating environments. It is particularly suitable for high-load, high-ambient-temperature, or long-term heat-generating conditions.

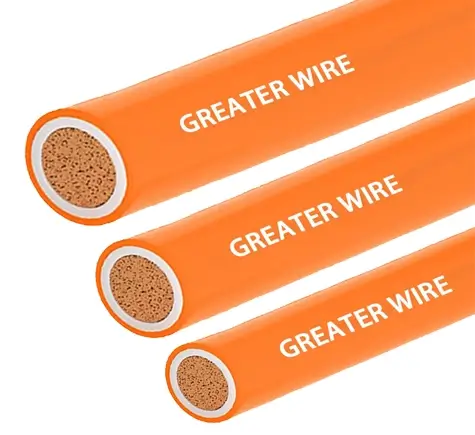

Single Core 110°C Flexible Cable
Flexible single core R-E-110 insulated and HFS-110-TP sheathed cable for mains,submainsand subcircuits unen-closed, enclosed in conduit, buried or in underground ducts for building and industrial plants where not subject to me-chanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.
Class 5 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
X-HF-110 Insulation
Standards AS/NZS 5000.1
HFS-110-TP Sheath
Maximum Operating Temperature 110 °C
Advantages of X-HF-110 Cable
Single core 110 °C elastomer cable uses flexible Class 5 copper conductors, providing excellent bending performance. The cable maintains high reliability even in confined spaces, complex wiring, or applications requiring frequent movement.
| Conductor | Cable | Approx. mass kg/100m | Min. installed bending radius(a)mm | |||
| Nominal C.S.A. | Number and diameter of wires | Nominal insulation thickness | Overall diameter mm | |||
| mm | No/mm | mm | Minimum mm | Maximum mm | ||
| 35 | 7.7 | 1.2 | 12.5 | 13.3 | 40.3 | 55 |
| 50 | 9.3 | 1.4 | 14.5 | 15.3 | 55.9 | 65 |
| 70 | 11.1 | 1.4 | 16.3 | 17.2 | 75 | 70 |
| 95 | 12.8 | 1.6 | 18.5 | 19.4 | 97.9 | 80 |
| 120 | 14.5 | 1.6 | 20.2 | 21.1 | 122 | 85 |
| 150 | 16.3 | 1.8 | 22.5 | 23.6 | 151.1 | 95 |
| 185 | 18 | 2 | 24.8 | 25.8 | 183.1 | 105 |
| 240 | 20.8 | 2.2 | 28.1 | 29.2 | 239 | 120 |
| 300 | 23.4 | 2.4 | 31.2 | 32.4 | 296.7 | 130 |
| 400 | 26.8 | 2.6 | 35.1 | 36.4 | 386 | 150 |
| 500 | 30.3 | 2.8 | 39.1 | 40.5 | 485.2 | 165 |
| 630 | 35.1 | 2.8 | 39.1 | 40.5 | 637 | 185 |
Certification
Single core 110 °C cable has successfully passed SAA certification, with certification numbers SAA243314 and SAA241315. SAA cables undergo comprehensive testing in electrical insulation, heat resistance, flame retardancy, mechanical strength, and long-term operational reliability, and meet AS/NZS 5000.1 standards.

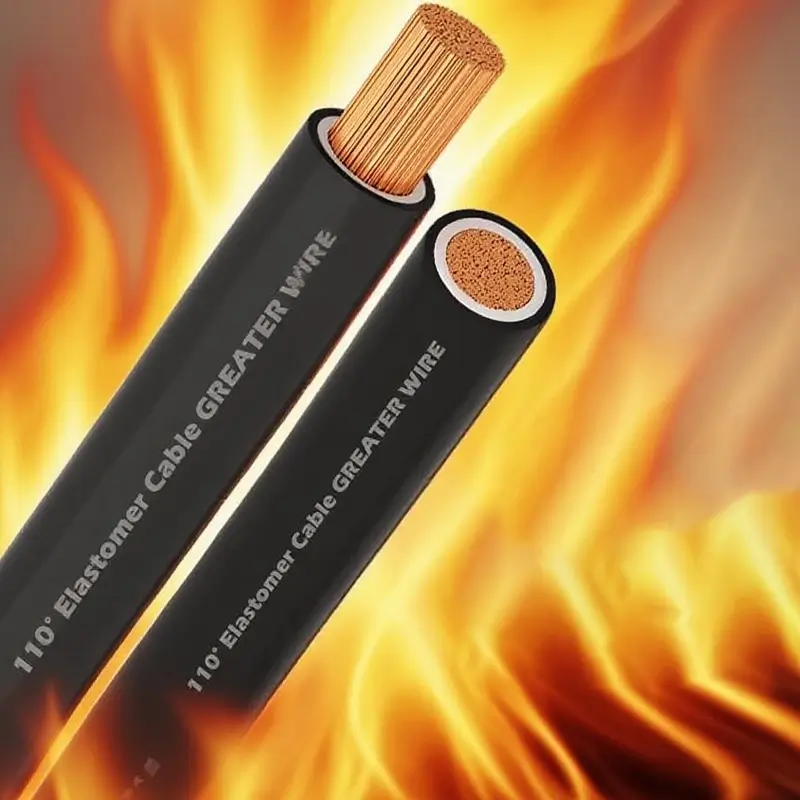

Temperature Resistance
Halogen-Free
High Flexibility
SAA Certified
APPLICATIONS
Flexible 110 °C cable utilizes low-smoke, low-toxicity, halogen-free materials, offering excellent flame retardancy and low smoke and corrosive emissions. It is ideal for electrical systems requiring high heat resistance, flame retardancy, and flexibility, such as building power distribution networks, internal wiring in industrial equipment, power connections for public utilities, and commercial and infrastructure projects.
Building Wiring
Used in hospitals, airports, subway stations, schools, and other projects with strict requirements for flame retardancy, low smoke, and low toxicity, meeting fire safety standards and reducing smoke hazards.
Industrial Plants
Elastomer cable is used in factories for power connections in high-temperature operating machinery and equipment, such as motors, compressors, pumps, and robotic arms, ensuring stable power supply under prolonged heat loads.
Power Distribution Cabinet
Suitable for high-temperature terminal connections and busbar leads inside distribution cabinets, control cabinets, and switch cabinets. The cable's 110°C temperature rating effectively improves system safety.
Tunnels
Single core 110°C cable is suitable for environments where heat is difficult to dissipate, such as tunnels, underground parking garages, and subway areas. The cable can reliably withstand long-term high-temperature loads.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional elastomer cable manufacturer, our company is equipped with a full range of modernized manufacturing and quality control equipment, including high-speed extrusion lines, precision stranding machines, automatic winding systems, and advanced electrical performance testing instruments. These facilities allow us to achieve high production efficiency, stable performance, and strict compliance with international cable standards such as SAA, UL, IEC, BS, and others.
Packaging Information
Single core 110 °C flexible cable is available in various sizes and lengths. The cable can be neatly and securely packaged in wooden reels, plastic reels, or durable cardboard boxes. The outer layer is covered with a moisture-proof protective film to prevent damage from moisture, dust, and external forces.
Wooden Drum Packaging
Large Wooden Drum Packaging
Reel Packaging
