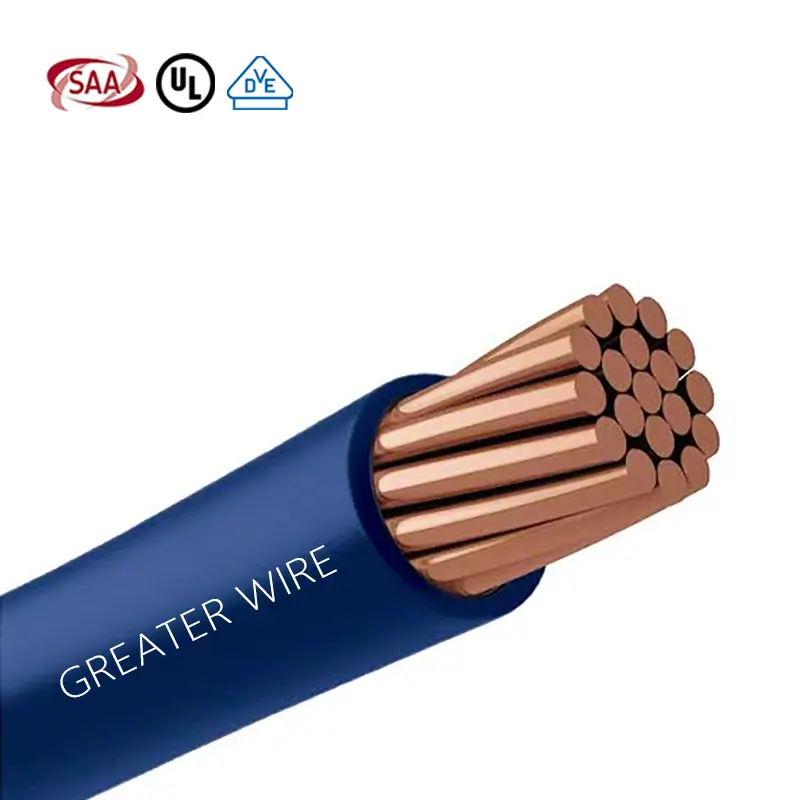

SAA Standard PVC Insulated Single Core Building Stranded Wire
Conductor material：
Copper
Conductor flexibility：
Class 2
Insulation：
V-90
Outer sheath ：
PVC
Rated Voltage Uo/U (Um)：
0.6/1kV
Standards：
AS/NZS 5000.1
Description
Download

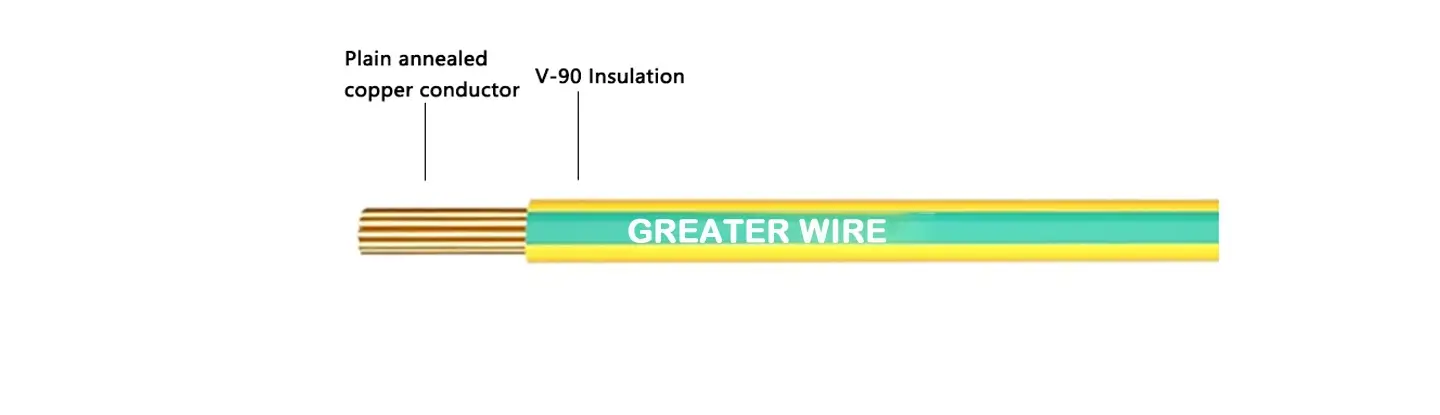

Copper Conductor
Plain annealed copper conductor to AS/NZS 1125
V-90 PVC Insulation
Heat-resistant and PVC Insulation to AS/NZS 5000.1
Single Core Cable
Simplified Installation
0.6/1kV Voltage
a wide range of low-voltage installation environments

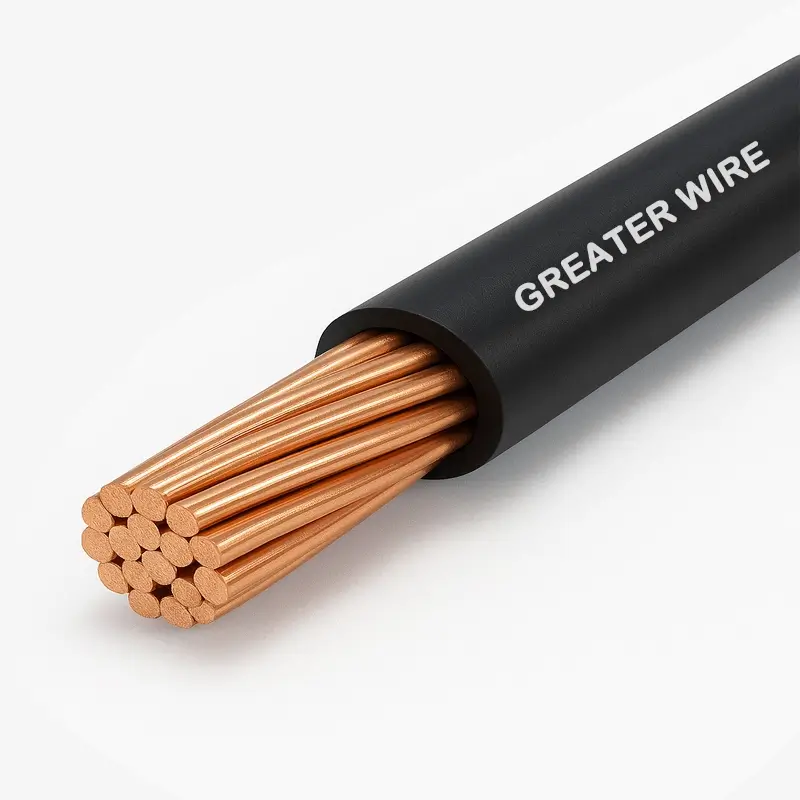

PVC Single Core building electrical wire
PVC insulated single core building stranded wire uses high conductivity copper stranded wire as the main conductor, with single core structure and an outer V-90 PVC insulation layer. It meets the stringent requirements of AS/NZS 5000.1 (unsheathed) and AS/NZS 1125, and is a professional-grade cable widely used in Australian building wiring.

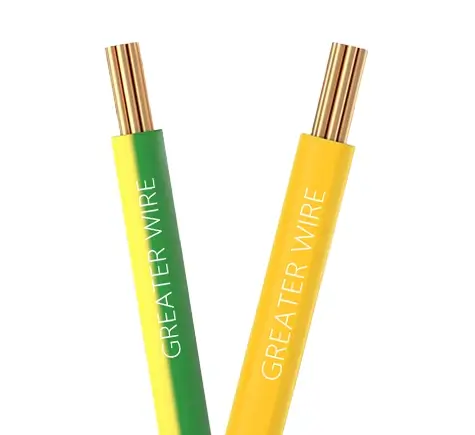

Single Core Copper building Cable
For separate earth conductors. For switchboard and control panel wiring. For fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools. For use where improved aging properties to those of 75 °C PVC are required because of higher ambient temperatures. Suitable for glanding.
Class 2 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
V-90 Insulated
Standards AS/NZS 5000.1
PVC Sheathed
Temperature range 0℃ to 75 ℃
Advantages of building wire cable
The stranded wire structure of single core building electrical wire not only improves flexibility, facilitating installation in confined spaces, curved lines, and complex wiring environments, but also provides stable electrical performance.
| Cross section （mm²） |
Type of conductor | Nom.overall diam. （mm） |
Approx. weight （kg/100m） |
Max. pulling tension （KN） |
Min. bend. rad. during instal. （mm） |
Min. bend.rad.installed （mm） |
| 1 | Solid Copper | 2.8 | 1.6 | 0.07 | 34 | 22 |
| 1.5 | Stranded Copper | 3.1 | 2 | 0.11 | 19 | 12 |
| 2.5 | Stranded Copper | 3.6 | 3.2 | 0.18 | 22 | 14 |
| 4 | Stranded Copper | 4.5 | 5.1 | 0.28 | 27 | 18 |
| 6 | Stranded Copper | 5.1 | 7.1 | 0.42 | 31 | 20 |
| 10 | Stranded Copper | 6.0 | 11.1 | 0.7 | 36 | 24 |
| 16 | Stranded Copper | 6.9 | 17.0 | 1.1 | 41 | 28 |
| 25 | Compact Copper | 8.4 | 26.0 | 1.8 | 100 | 67 |
| 35 | Compact Copper | 9.4 | 35.0 | 2.5 | 110 | 75 |
| 50 | Compact Copper | 10.9 | 48.0 | 3.5 | 130 | 87 |
| 70 | Compact Copper | 12.4 | 67.0 | 4.9 | 150 | 99 |
| 95 | Compact Copper | 15.2 | 96.0 | 6.7 | 180 | 120 |
| 120 | Stranded Copper | 16.4 | 113.5 | 8.4 | 98 | 66 |
| 150 | Stranded Copper | 18.8 | 144.0 | 11 | 110 | 75 |
Certification
Building wires have successfully passed SAA certification, with certification numbers SAA-240486-EA and SAA-240487 for the stretched cables. SAA certification not only signifies the safety and stability of our wires and cables but also demonstrates their full compliance with Australian market access standards, providing customers with greater assurance during project bidding, construction acceptance, and long-term operation.
Heat Resistant
Strong Structure
Stable and Reliable
SAA Certified
APPLICATIONS
V-90 building cable offers excellent electrical insulation, flame retardancy, and abrasion resistance, enabling long-term operation in residential, commercial, and industrial power distribution systems. Its superior mechanical toughness and weather resistance also make it suitable for switchgear wiring, distribution board connections, lighting circuits, control systems, and general fixed installations.
Building Wiring
Building cable is used for lighting, power, and control circuits in commercial buildings such as offices, shopping malls, and hotels, meeting high-load operation requirements.
Industrial Plants
Single stranded wire is used for fixed wiring inside factory production lines, machine tools, and distribution boxes, ensuring the safe operation of machinery.
Power Distribution Cabinet
Stranded cable is suitable as a single-core connecting wire inside switch cabinets, distribution boxes, and control cabinets, achieving safe and reliable electrical connections for each circuit.
Outdoor lighting
Copper building wire and cable are used for indoor and outdoor fixed lighting circuits, including offices, shopping malls, public facilities, and parking lots, meeting long-term reliability requirements.
Customer Photos
Geritel Wire's wires and cables are sold in numerous countries and regions worldwide, serving customers across North America, Europe, Oceania, Southeast Asia, and the Middle East. Our clients include multinational engineering companies, distributors, and industrial enterprises.
plant equipment
Geritel Wire is a professional Australian cable manufacturer with a modern production facility equipped with fully automated stranding machines, extruders, testing equipment, and a finished cable reel system. Every meter of cable undergoes high precision and consistent quality during manufacturing. The advanced production line not only increases capacity but also ensures flexible production to meet various specifications and customized needs.
Packaging Information
Building cables are available in three packaging methods: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
Global Certification
Geritel Wire's wires and cables have obtained numerous international certifications, including UL, cUL, SAA, TÜV, CE, VDE, and ISO. Each cable meets stringent global standards in terms of safety, durability, and performance.
