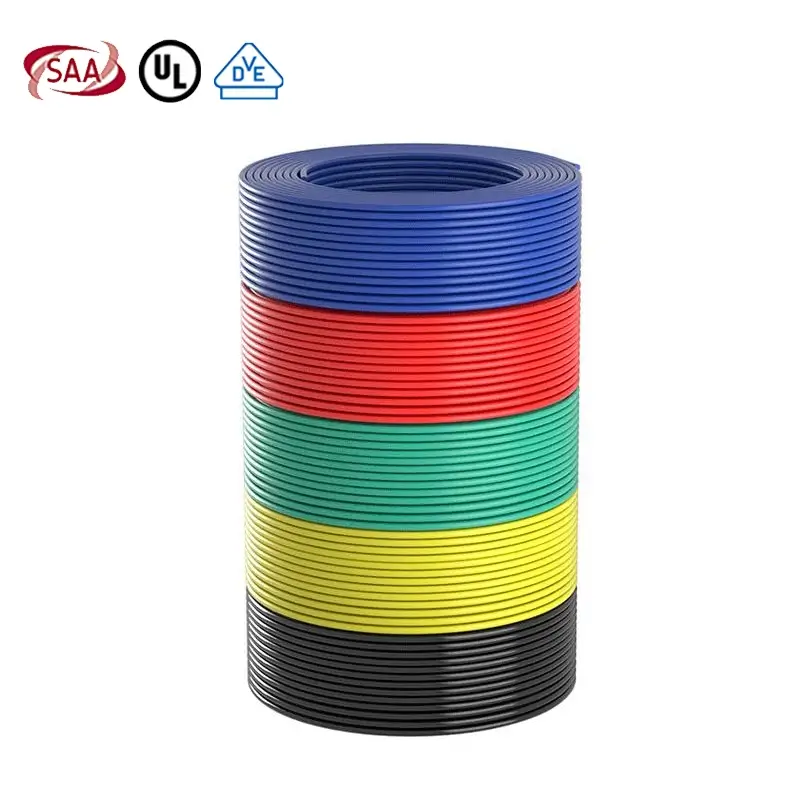

SAA Approval PVC Single Core Flexible Wire
Conductor material：
Copper
Conductor flexibility：
Class 5
Type of conductor：
Stranded flexible
Insulation：
V-90
Outer sheath ：
PVC
Rated Voltage Uo/U (Um)：
0.6/1kV
Standards：
AS/NZS 5000.1
Description
Download
Copper Conductor
Plain annealed copper conductor to AS/NZS 1125
V-90 PVC Insulation
Heat-resistant and PVC Insulation to AS/NZS 5000.1
Single Core Cable
Simplified Installation
0.6/1kV Voltage
a wide range of low-voltage installation environments

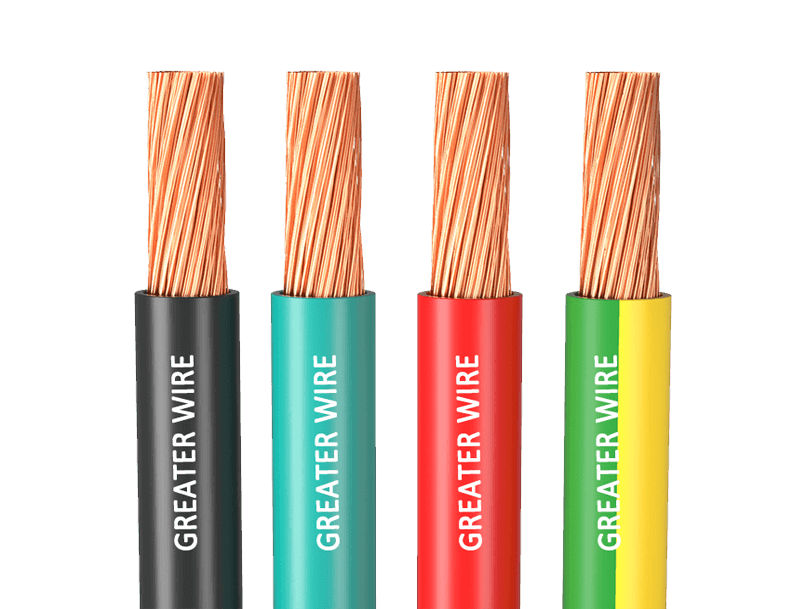

PVC Single Core Copper flexible Cable
Flex cables possess excellent electrical and mechanical properties. The conductor is covered with a V-90 PVC insulation layer, providing necessary electrical isolation. The PVC insulation layer has uniform thickness, excellent mechanical protection, and abrasion resistance, effectively preventing external damage.

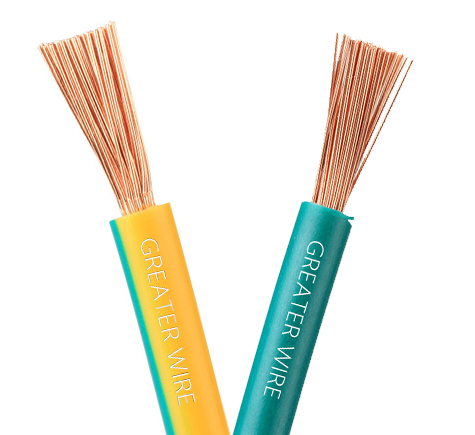

Single Core flexible Cable
For use as protective earth in electrical installations. For use where improved aging properties to those of 90°C PVC are required because of higher ambient temperatures. Suitable for glanding.
Class 5 Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
V-90 Insulated
Standards AS/NZS 5000.1
PVC Sheathed
Temperature range 0℃ to 90 ℃
Advantages of flexible building Cable
SAA PVC insulation single core flexible wire utilizes a highly flexible Class 5 multi-strand copper conductor structure compliant with AS/NZS standards. Precision stranding ensures superior bending performance and mechanical stability. The outer layer is covered with a high-quality V-90 PVC insulation layer, offering uniform thickness and robust surface protection against abrasion, compression, and moisture intrusion. Green/yellow, red, black, or other colored insulation provides clear circuit identification, facilitating wiring management for installers.
| Cross section （mm²） |
Nom.overall diam. （mm） |
Approx. weight （kg/100m） |
Max. pulling tension （KN） |
Min. bend. rad. during instal. （mm） |
Min. bend.rad.installed （mm） |
| 10 | 6.3 | 10.6 | 0.2 | 38 | 19 |
| 16 | 7.3 | 15.9 | 0.32 | 44 | 22 |
| 25 | 9 | 24.7 | 0.5 | 54 | 27 |
| 35 | 10.2 | 33 | 0.7 | 61 | 31 |
| 50 | 12.2 | 48.5 | 1 | 73 | 49 |
| 70 | 13.9 | 69 | 1.4 | 83 | 56 |
| 95 | 16 | 94.2 | 1.9 | 96 | 64 |
| 120 | 18.2 | 111 | 2.4 | 109 | 73 |
| 150 | 20.1 | 138 | 3 | 121 | 80 |
| 185 | 22.4 | 169 | 3.7 | 134 | 90 |
| 240 | 25.4 | 222 | 4.8 | 229 | 152 |
| 300 | 28.3 | 275 | 6 | 255 | 170 |
| 400 | 32.0 | 357 | 8 | 288 | 192 |
Certification
Single core flexible cable has successfully passed Australian SAA certification, certification numbers SAA241317 and SAA241316, which customers can verify on our official website. SAA certification is one of the most authoritative qualifications in the Australian electrical industry, allowing wires and cables to be legally manufactured, sold, and installed in Australia, New Zealand, and other Oceania markets.
Heat Resistant
Strong Structure
High Flexible
SAA Certified
APPLICATIONS
Australia standard flexible cables are particularly suitable for environments requiring highly flexible conductors, such as mobile equipment grounding, internal connections in switchgear, temporary power distribution on building sites, and grounding connections between distribution panels and busbars.
Building Wiring
In buildings, single core flex building cable effectively conducts leakage or fault currents into the grounding system, ensuring the safety of electrical equipment and users. It is particularly suitable for space constrained distribution boxes or building environments requiring frequent modifications.
Solar Systems
In photovoltaic (PV) mounting systems, inverters, and battery systems, single core flexible wires serve as protective grounding conductors. Their multi-strand copper conductors facilitate installation within mounting structures and conduits, while the PVC insulation layer ensures weather resistance and mechanical protection.
Power Distribution Cabinet
Flexible building cable provides heat and abrasion resistant protection, making it suitable for motor installations in factories or production workshops. Furthermore, this cable meets relevant standards and can be safely used with other low-voltage control and power lines, improving the overall safety of the motor system.
Lighting Systems
Single core flexible wire effectively conducts accidental leakage or short-circuit current into the grounding system, preventing electric shock from live metal parts of the luminaires, improving the overall safety of the lighting system, and maintaining a neat and aesthetically pleasing wiring layout.
Customer Photos
With extensive export experience, Geritel Wire has successfully supplied wires and cables to over 80 countries and regions globally, including North America, South America, Europe, Southeast Asia, and the Middle East.
plant equipment
Geritel Wire is a professional SAA cable manufacturer. Our factory also supports flexible customization services, including conductor structure, insulation color, cross-sectional area range, packaging methods, and label printing, among other non-standard requirements. We have an experienced technical team that can provide engineering-grade cable solutions for various projects. Whether it's OEM, ODM, or long-term bulk supply, our factory can meet the needs of global customers with rapid response and consistent quality.
Packaging Information
Building cables are available in three packaging methods: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
