Australia 0.6/1KV Parallel Webbed Aerial Cable
Conductor material：
Copper
Conductor flexibility：
Class 2
Insulation：
PVC
Rated Voltage Uo/U (Um)：
0.6/1 kV
Standards：
AS/NZS 5000.1
Description
Download

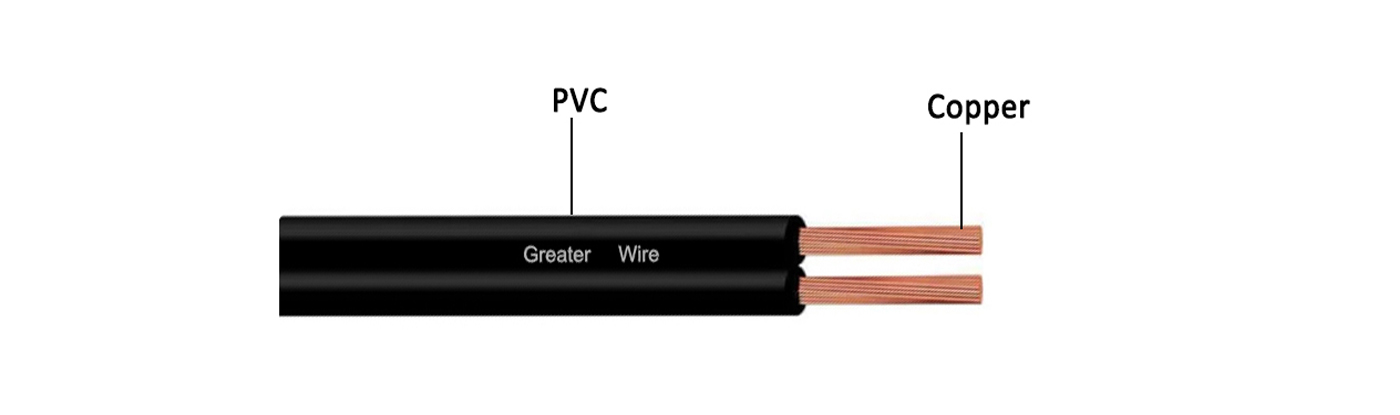

Copper Conductor
Stranded copper conductor
PVC Insulation
PVC sheath to AS/NZS 5000.1
Two Core Cable
Parallel Webbed
0.6/1kV Voltage
a wide range of low-voltage installation environments

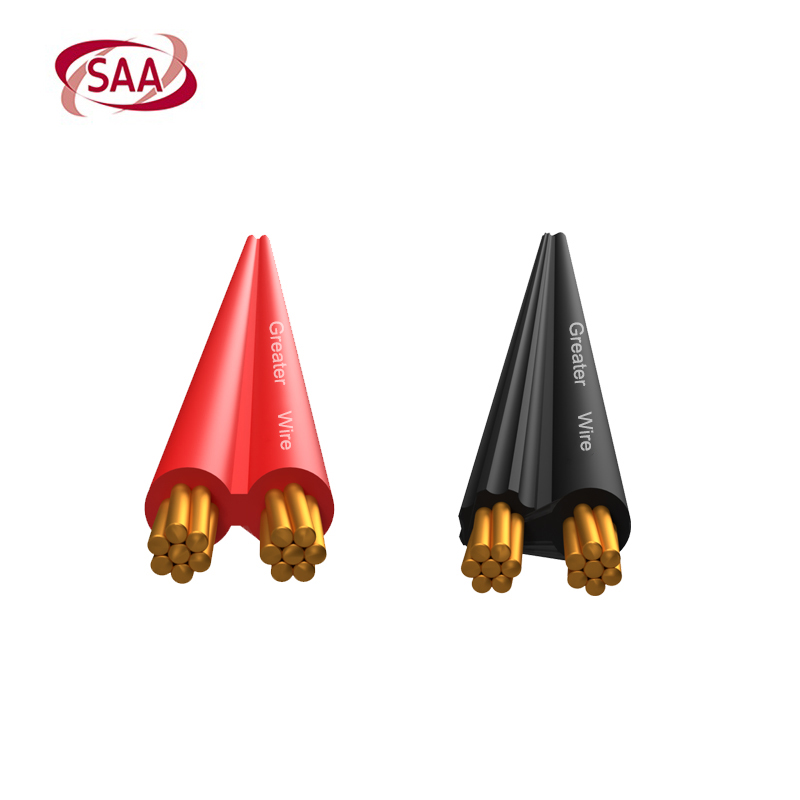

PVC two core Aerial Cable

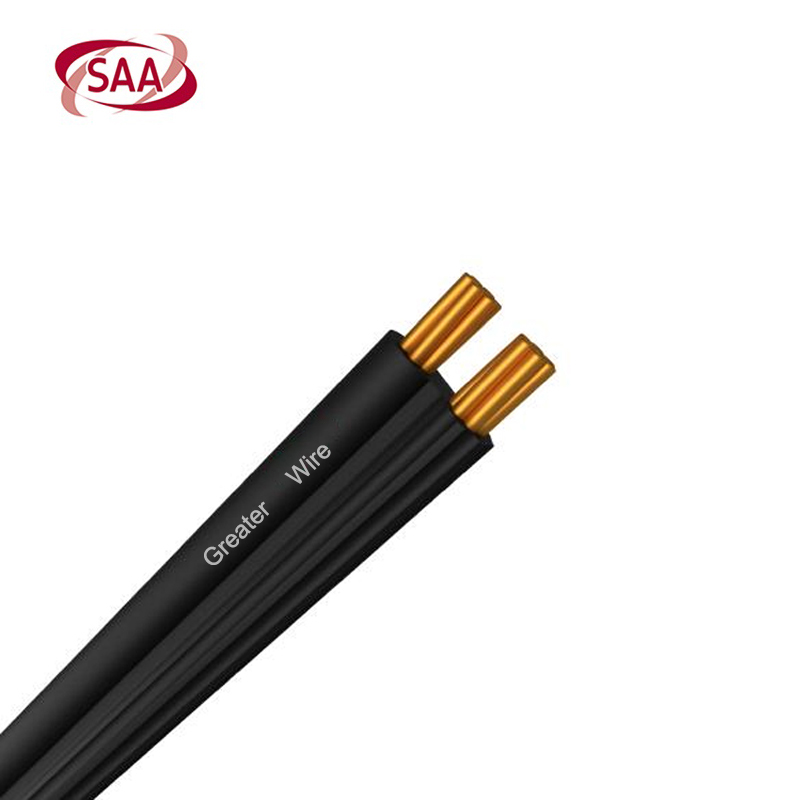

PVC Aerial Cable is a high-quality low-voltage power transmission cable with a rated voltage of 0.6/1kV, high-quality copper conductors and weather-resistant PVC insulation. The cable offers excellent durability and safety and is designed for overhead installation.

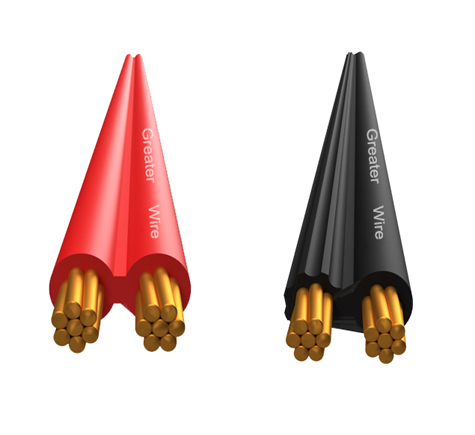

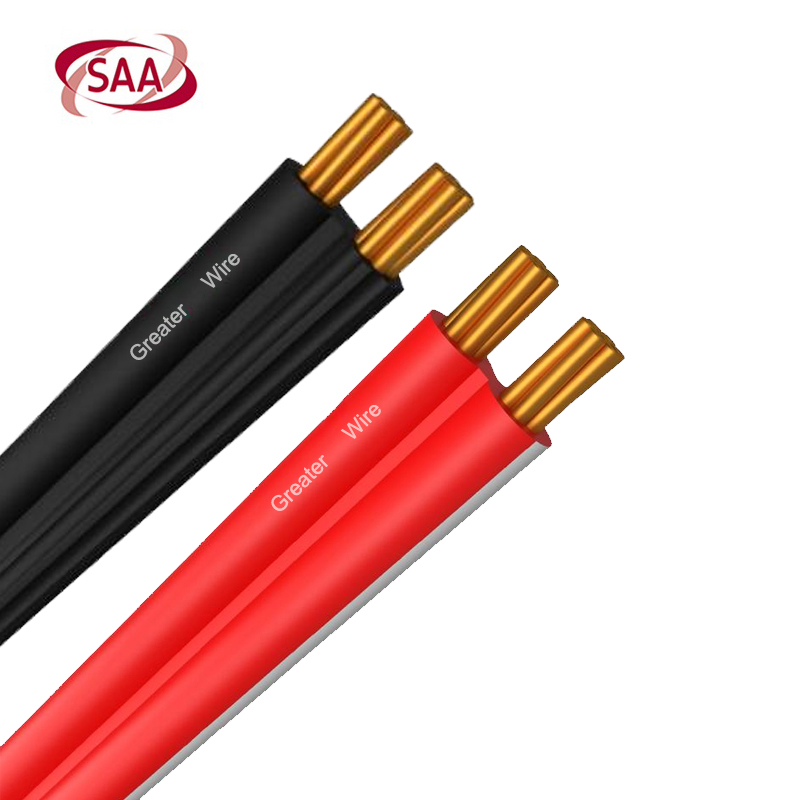

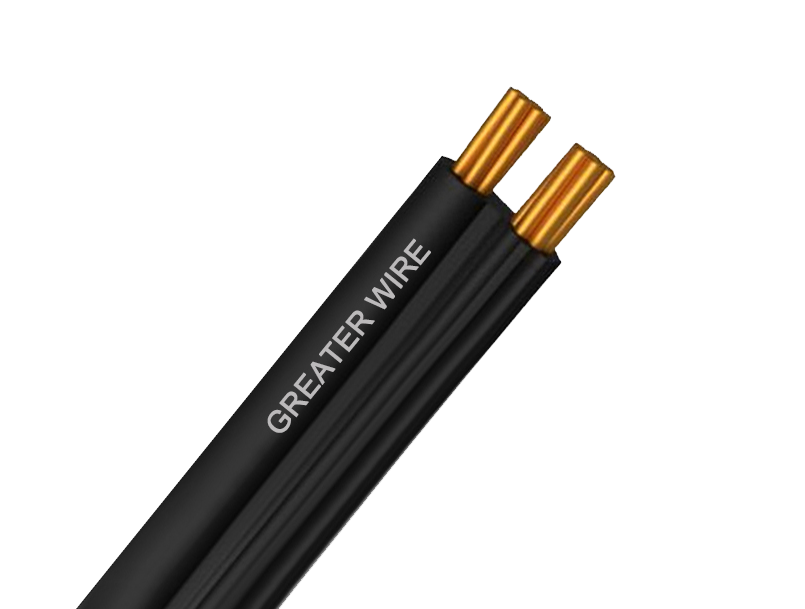

Parallel Webbed Aerial Cable
Aerial parallel cable is designed for various low-voltage power distribution applications and is suitable for fixed installations of power equipment, residential lighting systems, household appliances, and electrical instruments.
Hard Drawn Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
Stranded Two Core Copper Conductors
Standards AS/NZS 5000.1
PVC Insulated
Temperature range 0℃ to 70 ℃
Advantages of Aerial Cable
Aerial cable conductor uses high-purity copper stranded wire, which is flexible and oxidation-resistant. The insulation layer uses PVC material of uniform thickness, providing excellent protection for the conductor. The cable adopts a parallel structure as shown in Figure 8 or a double-core parallel design, facilitating overhead installation.
| Conductor | Cable | Minimum Installed Bending Radius | |||||
| Nominal Area | Number & Diameter of Wires | Minimum Overall Diameter | Maximum Overall Diameter | Approx Mass Per 100m kg | |||
| Major Axis | Minor Axis | Major Axis | Minor Axis | ||||
| mm2 | (No./mm) | mm | mm | mm | mm | (b)mm | |
| 6 | 7/1.04 | 10.7 | 5.1 | 11.8 | 5.4 | 14.7 | 30 |
| 10 | 7/1.35 | 12.6 | 6 | 13.6 | 6.3 | 23.2 | 40 |
| 16 | 7/1.70 | 14.7 | 7.1 | 15.8 | 7.4 | 35.6 | 40 |
Certification
Aerial Cable has obtained SAA certification in Australia, with certification numbers SAA-240450-EA & SAA240451, covering different specifications. Users can confidently deploy cables in Oceania, ensuring a long-term stable power supply and safe operation.
Temperature Resistant
Flame Retardant
UV Resistance
SAA Certified
APPLICATIONS
0.6/1kV PVC aerial cable is used in overhead power lines and various low-voltage power systems, suitable for lighting and electrical equipment in residential, commercial, and industrial buildings; it can provide reliable power for automated instruments, electronic equipment, and control devices; it can also be used for security monitoring equipment and temporary construction site power wiring.
Building Wiring
Aerial cables can be used for overhead power lines in residential buildings, providing a stable power supply for lighting, household appliances, and air conditioning equipment.
Industrial Plants
In factories and production workshops, SAA aerial cables provide safe low voltage power to machinery, power units, and control systems, ensuring production continuity.
Outdoor Lighting
Suitable for overhead wiring of streetlights and landscape lighting in parks, streets, parking lots, and courtyards. Highly UV resistant and weather-resistant.
Agriculture
Suitable for overhead installation in agricultural irrigation systems, greenhouse lighting, and agricultural power facilities. Corrosion-resistant and UV-resistant.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
We are a professional Australia cable manufacturer, our company is equipped with a full range of modernized manufacturing and quality control equipment, including high-speed extrusion lines, precision stranding machines, automatic winding systems, and advanced electrical performance testing instruments. These facilities allow us to achieve high production efficiency, stable performance, and strict compliance with international cable standards such as SAA, UL, IEC, BS, and others.
Packaging Information

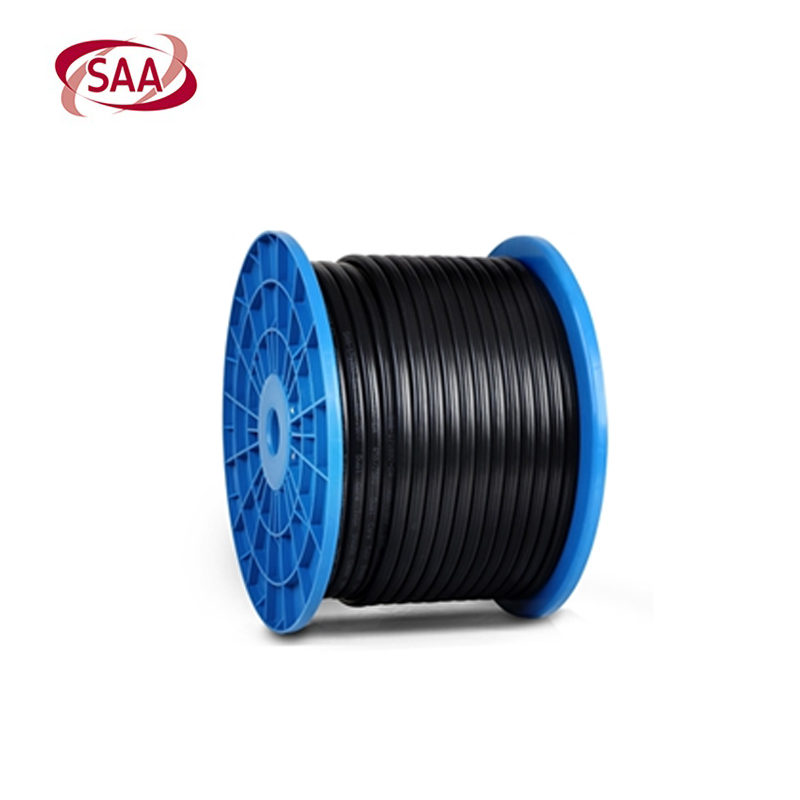

Aerial cables are available in three packaging methods: coiled, plastic reel, and wooden reel.
Coiled
Plastic Reel
Wooden Reel
