Aluminum Aerial Bundle ABC Cables
Conductor：
Aluminum Conductor
Insulation：
XLPE
Standard：
IEC 60502
Number of Cores：
2-5 Cores
Temperature Rating：
-30℃ ~ +90℃
Voltage：
0.6/1kV
Description
Download
Conductor
Aluminium Conductor
Insulation
XLPE
No. of Conductor
Typically 2–5 Cores In a Bundle
Temperature Rating
-30℃ ~ +90℃

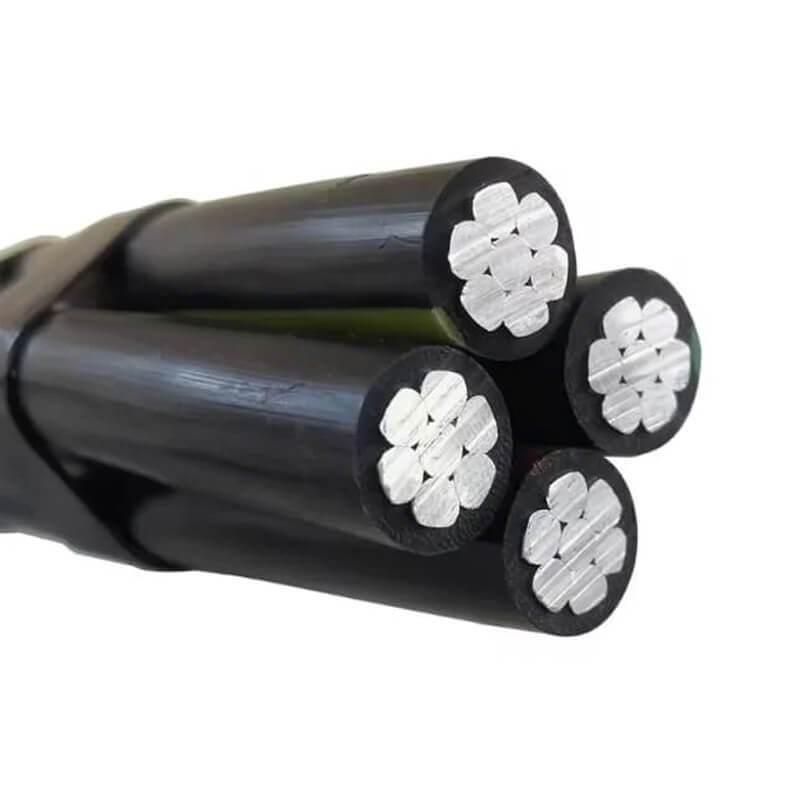

Aluminum Aerial Bundle ABC Cables
ABC cable is a bundled power cable specifically designed for low-voltage overhead power distribution systems. Compared to traditional bare conductors, ABC cable offers significant advantages in safety, reliability, and environmental adaptability, effectively reducing the risk of electric shock and the probability of phase-to-phase short circuits. It is particularly suitable for densely populated areas, urban streets, rural power distribution networks, and areas with abundant trees.

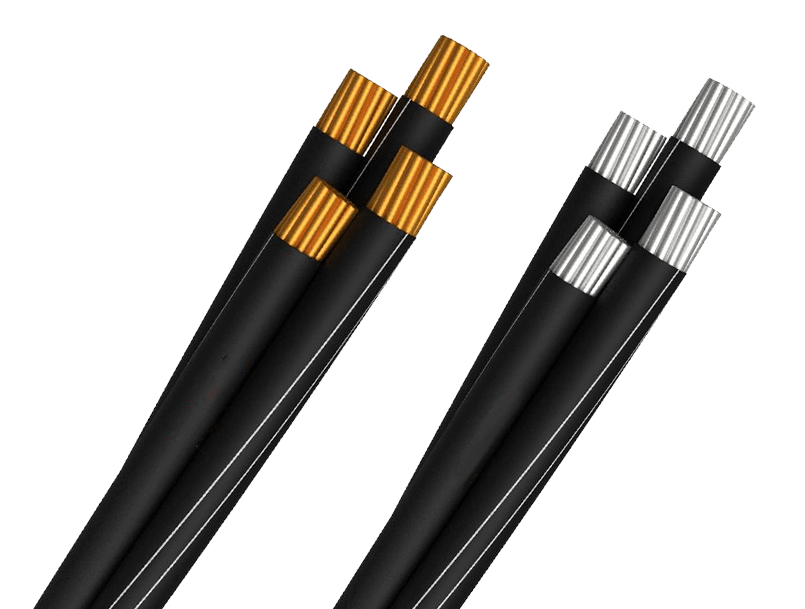

ABC Cables
Aerial bundle cables are easy to install and construct overhead. The insulation layer possesses excellent UV resistance, aging resistance, and weather resistance, making it suitable for long-term outdoor operation.
Conductor : Aluminum Conductor
Insulation：XLPE
Standard：IEC 60502
Temperature range ：-30℃ ~ +90℃

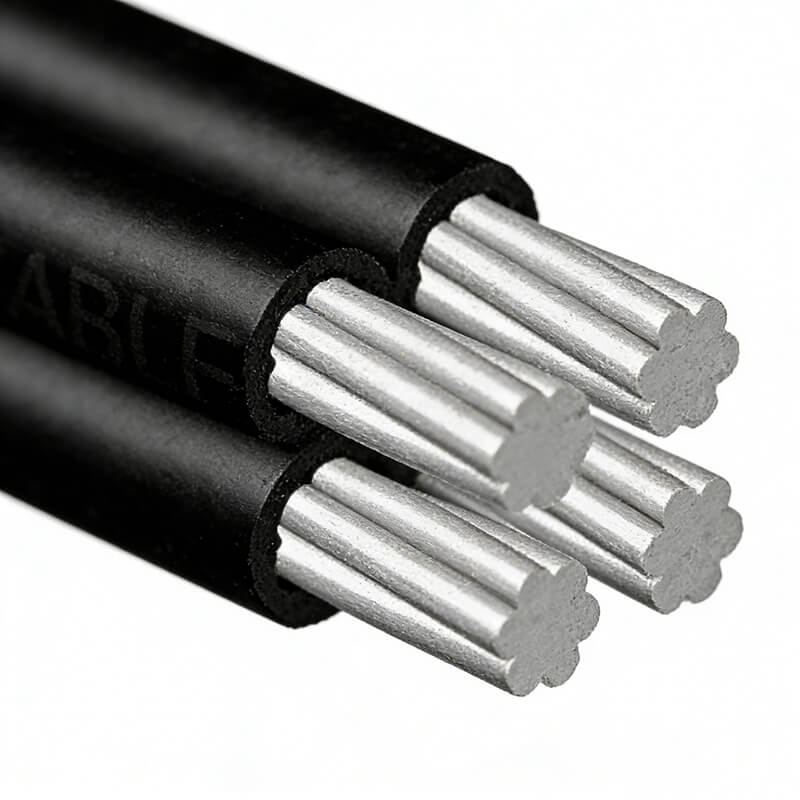

Advantages of Aluminum Aerial Bundle Cable

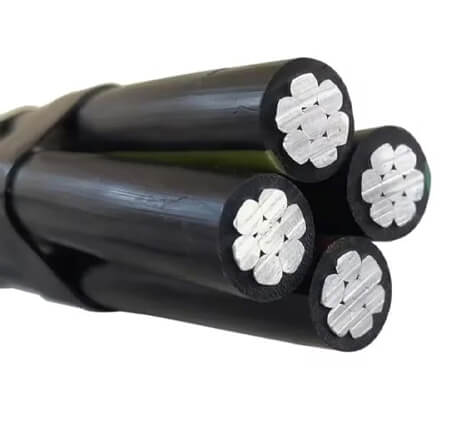

ABC cable typically consists of multiple aluminum conductor phase wires and a neutral wire. Each conductor is independently insulated with weather-resistant insulation material (such as XLPE) and then stranded into a bundle.
| Number of Cores x Nominal Cross Section | Min. Breaking Load of Conductor Strand | Current Rating in the Air | Outer Diameter | Total Weight |
| mm2 | kN | A | mm | kg/km |
| 4x25 RM | 3.5 | 84 | 21.5 | 420 |
| 4x35 RM | 4.9 | 104 | 23.9 | 550 |
| 4x120+1x25 RM | 16.8 | 246 | 43.8 | 1800 |
| 4x185+1x25 RM | 25.9 | 332 | 50.7 | 2700 |
Certification
Aluminum aerial bundle cable has passed multiple certifications. Conform to the IEC 60502 international standard, and their rated voltage, insulation performance, and heat resistance meet the requirements of global power distribution systems. The cables meet stringent standards in production, inspection, and performance.
Aerial Bundled
Weather Resistant
UV Resistant
Outdoor Durable
APPLICATIONS
ABC cable is widely used in 0.6/1 kV low-voltage overhead transmission and distribution lines, enhancing power supply safety and operational stability in modern power distribution networks.
Urban Power Distribution
Low-voltage overhead lines used in urban streets, with conductors bundled together to reduce the risk of electric shock and improve power supply reliability.
Industrial Power Distribution
Overhead lines laid within factories or industrial parks to ensure stable operation of equipment and lighting systems.
Residential Community
Overhead distribution branch lines used in residential buildings and communities, saving construction space and improving electrical safety.
Public Facility
Overhead lines laid in schools, sports fields, or public facilities, ensuring safe, durable, and long-term stable operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional ABC cable manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information
ABC cable is typically packaged on wooden reel, or large wooden reel. Custom packaging is also available.
