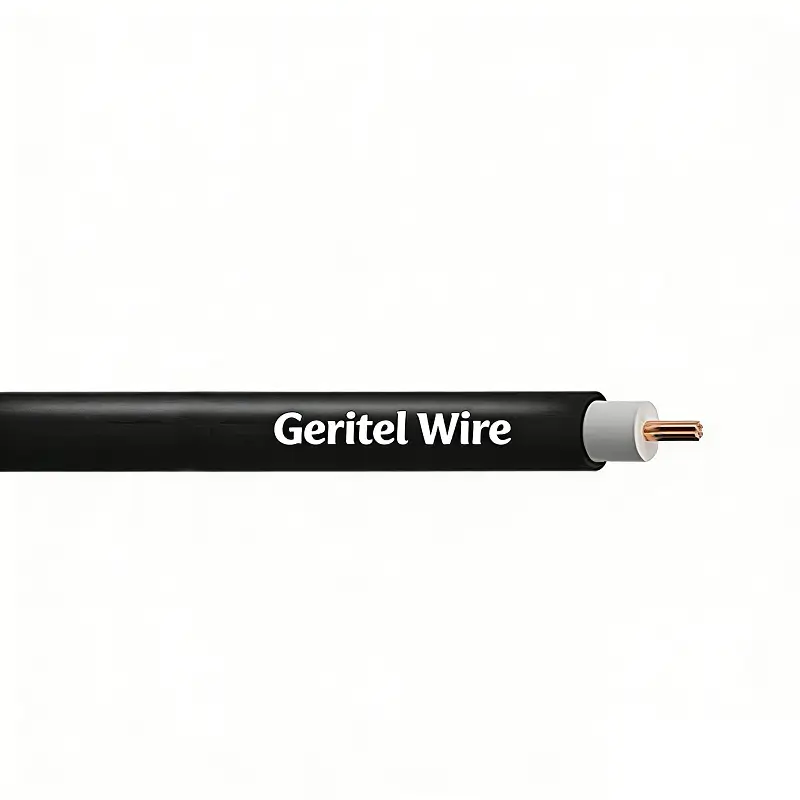

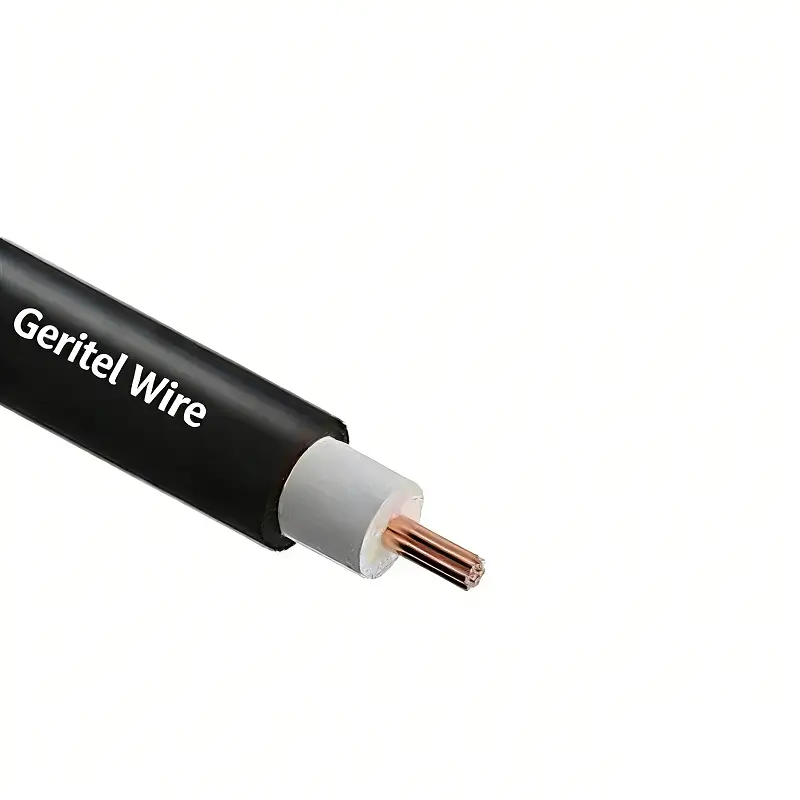

Type C FAA L-824 Unshielded 5kV Airfield Cable
Conductor ：
Bare Copper
Separator：
Semi-Conductive Extruded Layer Or Semi-Conductive Tape
Jacket：
XLPE (Cross-linked Polyethylene)
Rated Voltage：
5kV
Temperature Range：
-40°C to +90°C
Standard：
FAA
Description
Download
Conductor
Bare Copper
Sheath
XLPE (Cross-linked Polyethylene) Sheath
No. of Cores
Single Core
Temperature Rating
–20 °C to +75°C
5kV Airfield Cable
FAA L-824 Type B Unshielded 5kV Cable is a high-reliability cable specifically designed for airport runway and taxiway lighting. Compliant with FAA L-824 standards, it is used in main power supply lines connecting constant current regulators to lighting transformers.
Airfield Cable
FAA L-824 Type B Unshielded 5kV Cable is a high-voltage unshielded cable specifically designed for airport runway and taxiway lighting, used in main power supply lines connecting constant current regulators to lighting transformers.

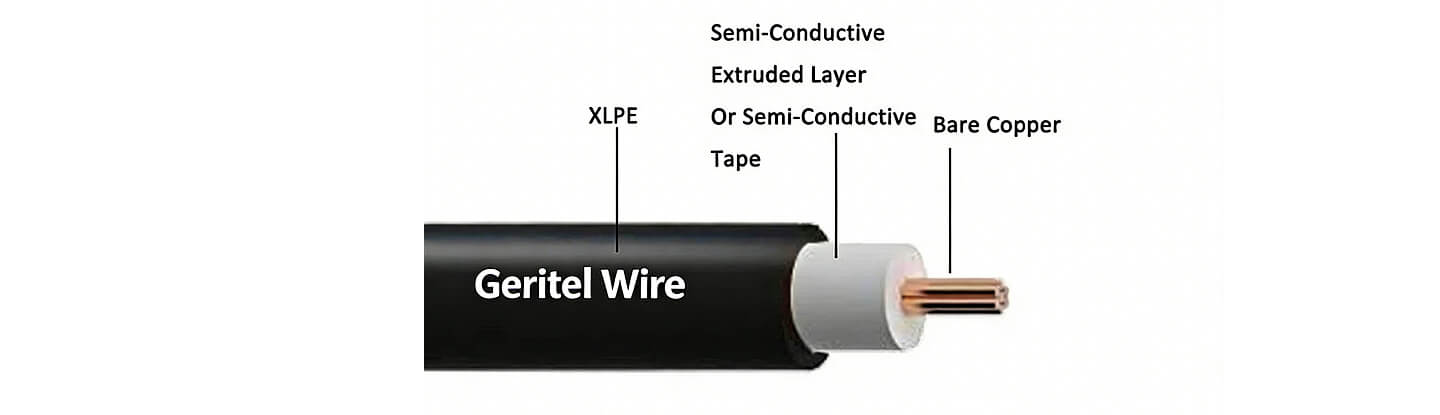

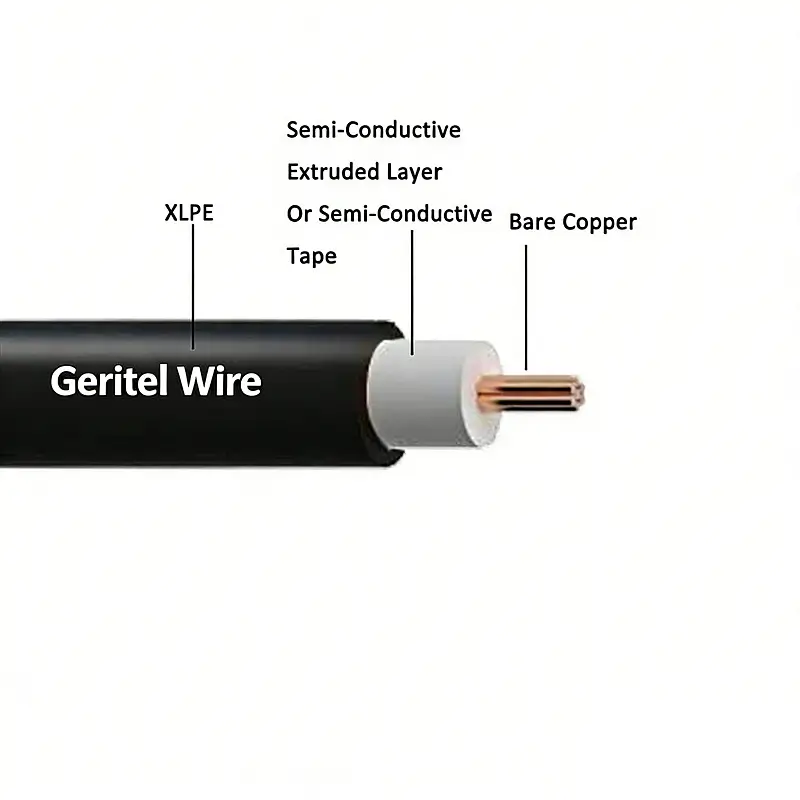

Conductors : Bare Copper
Rated Voltage Uo/U (Um) : 5kV
Separator : Semi-Conductive Extruded Layer Or Semi-Conductive Tape
Standards : FAA
Jacket : XLPE
Temperature range ：-40°C to +90°C
Advantages of cable
FAA L-824 cables use multi-strand copper conductors, offering excellent conductivity and mechanical flexibility. The conductors are covered with EPR (ethylene propylene rubber) insulation, ensuring electrical safety and heat resistance under high-voltage operating conditions. The outer sheath is made of weather-resistant and corrosion-resistant CPE/PVC material, protecting against UV radiation, moisture, and the corrosive effects of underground installations.

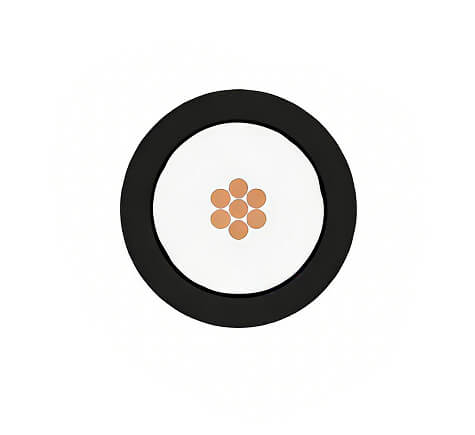

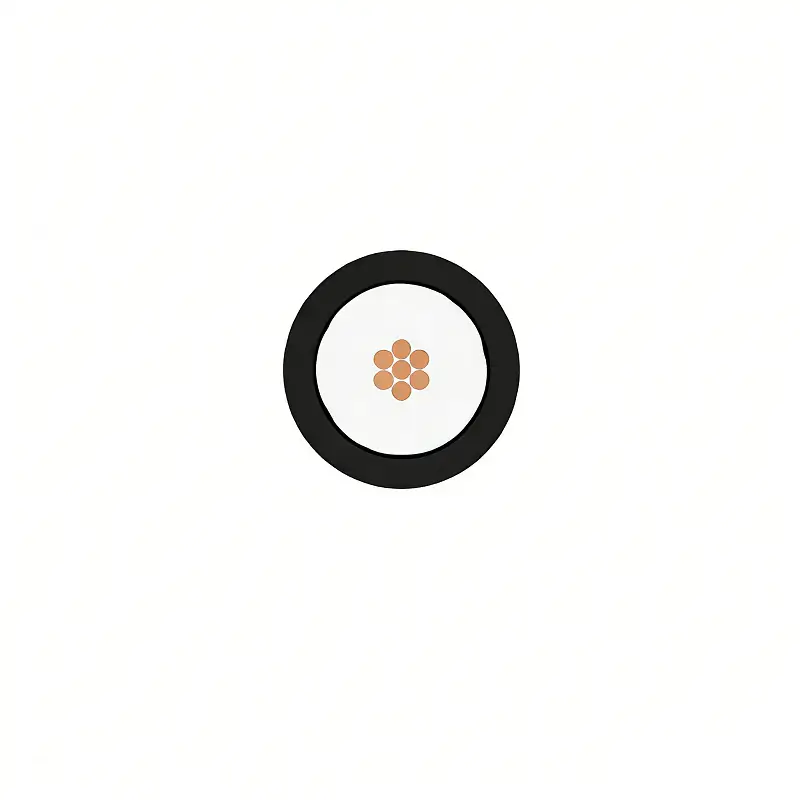

| NUMBER OF CORES | NOMINAL CROSS-SECTIONAL AREA | NUMBER OF STRAND | NOMINAL INSULATION THICKNESS | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| AWG | mm | mm | kg/km | ||
| 1 | 8 | 7/19 | 2.79 | 9.65 | 132 |
| 1 | 6 | 7/19 | 2.79 | 10.67 | 186 |
| 1 | 4 | 7/19 | 2.79 | 11.68 | 268 |
Certification
Airfield cable has passed multiple certifications. Airfield Cable, with its certification, offers high reliability, safety, and durability in airport lighting systems, providing professional assurance for long-term stable operation.
Airfield Lighting
Corrosion & UV Resistant
Weather-Resistant
FAA Certified
APPLICATIONS
Unshielded 5kV FAA L-824 cable is suitable for standard FAA main lighting circuits. It can safely transmit 5kV voltage without additional shielding and supports conduit laying or direct underground installation. FAA L-824 Type B cable is widely used in runway edge lights, taxiway lights, obstacle lighting, and navigation facilities.
Runway Edge Lights
FAA L-824 Type B cables provide a stable 5kV constant current power supply for airport runway edge lights, ensuring normal operation of runway lighting at night or in low visibility conditions, improving flight safety.
Taxiway Lighting
Used for the main power supply lines of taxiway lights, the cable's high voltage withstand and weather resistance ensure stable operation of taxiway lights over long periods, reducing maintenance frequency.
Obstacle Lighting
Suitable for high-voltage lighting lines for airport towers, masts, and other obstacles, providing reliable power support to ensure clear visibility of obstacle markings at night.
Navigation Facilities
FAA L-824 Type B cables can connect to navigation equipment and signal lights, ensuring continuous power supply to navigation systems in all weather conditions, supporting precise air traffic guidance.
