2kV XLPE BT PVC FAA L-824C Airfield Cable
Conductor ：
Class 2 Stranded Copper Conductor
Insulation：
XLPE (Cross-Linked Polyethylene)
Screen：
Brass tape
Jacket：
PVC (Polyvinyl Chloride)
Rated Voltage：
2kV
Temperature Range：
-25°C to +90°C
Standard：
FAA
Description
Download
Conductor
Class 2 Stranded Copper Conductor
Insulation & Sheath
XLPE (Cross-linked Polyethylene) Sheath Insulation & PVC Sheath
No. of Cores
Single Core
Temperature Rating
-25°C to +90°C
2kV Airfield Cable

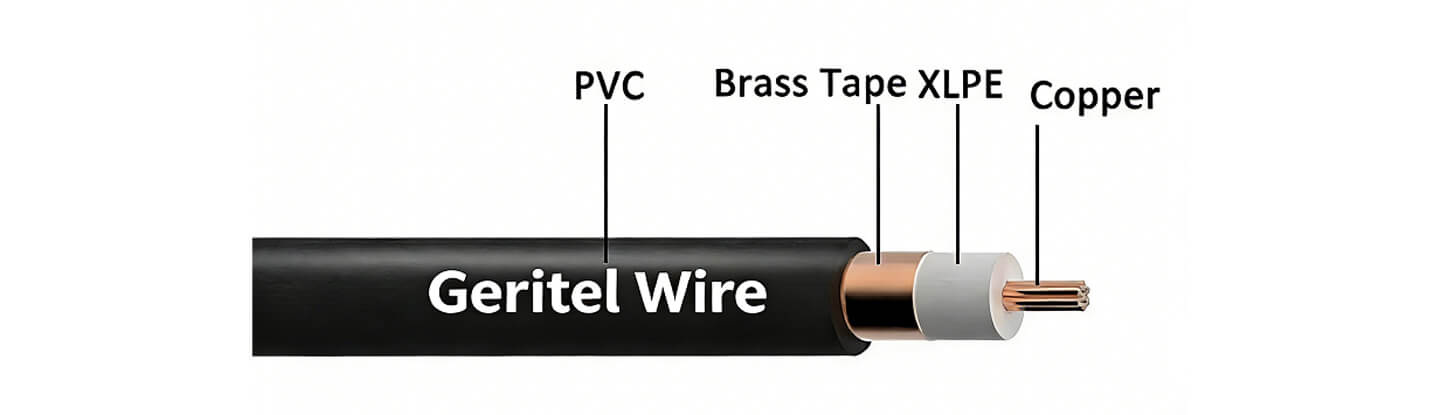

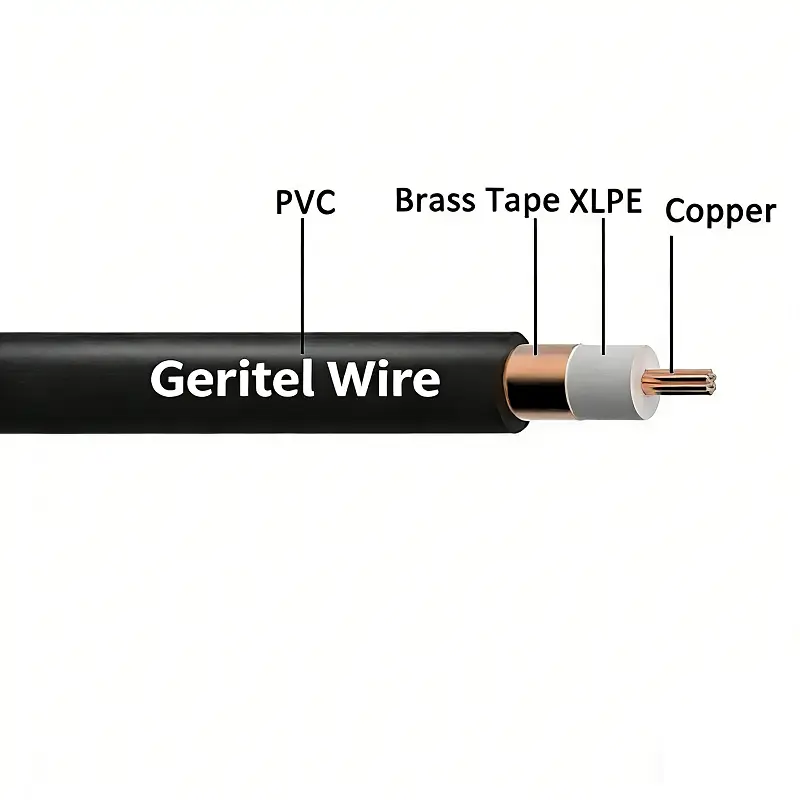

2kV XLPE BT PVC airfield cable is a single-core power cable with XLPE insulation, PVC sheath, and brass tape shielding, for reliable medium-voltage power distribution and airport lighting applications.
Airfield Cable
Airfield Cable, with its excellent insulation, shielding, and outer sheath combination, effectively reduces electromagnetic interference while ensuring safe power transmission and stable, reliable power delivery.
Conductors : Bare Copper
Rated Voltage Uo/U (Um) : 2kV
Insulation: XLPE (Cross-Linked Polyethylene)
Standards : FAA
Jacket : PVC
Temperature range ：-25°C to +90°C
Advantages of cable
2kV Airfield Cable conductor uses high-quality multi-strand copper wire, offering excellent conductivity while enhancing flexibility and tensile strength. With cross-linked polyethylene (XLPE) insulation and a PVC sheath, supplemented by brass tape shielding, the cable possesses good electrical performance and mechanical strength.
| NUMBER OF CORES | NOMINAL CROSS-SECTIONAL AREA | RADIAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | MAXIMUM RESISTANCE OF CONDUCTOR |
| mm2 | mm | mm | ohms/km | |
| 1 | 6 | 1.35 | 7.3 | 3.08 |
Certification
Airfield cable has passed multiple certifications. The cable meets stringent airport lighting cable standards, providing superior safety and long-term reliable power transmission.
Airfield Lighting
Direct Burial
Weather-Resistant
FAA Certified
APPLICATIONS
Airfield Cable is suitable for airport ground lighting systems, airspace marking, and other medium-voltage power distribution applications, capable of long-term reliable operation in harsh environments. It is suitable for various installation environments, including conduit, overhead, or direct burial.
Airport Runway
Used to connect runway lights and taxiway lights, ensuring a stable and reliable power supply during inclement weather to support safe flight operations around the clock.
Airfield Beacons
Provide reliable power to navigation signs and signal lights, ensuring pilot visibility and guidance at night and in low visibility conditions.
Airfield Lighting Control Cabinet
Serves as the main power cable from the control cabinet to the lights, providing high voltage resistance and interference immunity to ensure the lighting system responds accurately to control signals.
Airport Maintenance
Provides backup power or temporary lines during airport maintenance or emergency situations to ensure the continuous operation of critical equipment and lighting systems.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire and cable manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information
Airfield cable comes in three standard packaging options: coiled, plastic reel, and wooden reel. Customised packaging is also available.
Coiled
Plastic Reel
Wooden Reel
